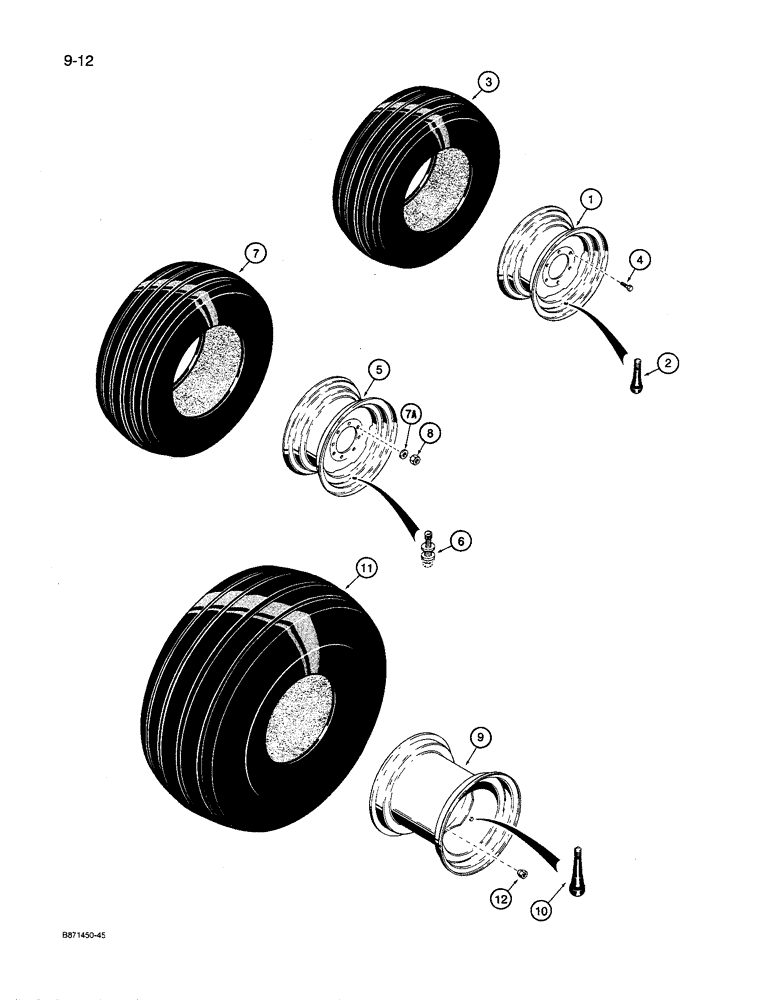

Запчасти Case IH 8600 (9-012) - WHEELS AND TIRES (09) - CHASSIS/ATTACHMENTS

1

598999R1

RIM

WHEEL - tool bar wing frame, 10 inch x 15 inch, 6 bolt

2шт.

2

536705R91

VALVE

STEM - valve, tire inflation

2шт.

3

REF

INSTRUCTION

TIRE - tool bar wing frame, 11.0L x 15, 6 ply tubeless, purchase from local source

2шт.

4

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- lug, wheel to hub, special

12шт.

5

592922R91

RIM

WHEEL - tool bar main frame, 10 inch x 16 inch, 8 bolt

2шт.

6

810769C1

VALVE

STEM - valve, tire inflation

2шт.

7

REF

INSTRUCTION

TIRE - tool bar main frame, 12.5L x 16, 12 ply tubeless, purchase from local source

2шт.

7a

30329R1

WASHER,M17.5 x 30 x 4, HT

- special, lug nut

16шт.

8

232-46110

LOCK NUT,5/8"-11, GC

NUT - hex, self-locking, 5/8 inch - 18 NF, wheel stud on hub

16шт.

9

1337367C1

RIM

WHEEL - cart frame, 16.1 inch x 16 inch, 8 bolt

2шт.

10

536705R91

VALVE

STEM - valve, tire inflation

2шт.

11

REF

INSTRUCTION

TIRE - cart frame, 19L x 16.1, 8 ply tubeless, purchase from local source

2шт.

12

1337446C1

NUT

- special, wheel stud on hub

16шт.

13

604754R1

WEIGHT

- wheel, 60 pound, used with 6 bolt wing frame wheel only, item 1, not shown (2 required per wheel)

4шт.

14

413-8128

BOLT,Hex, 1/2" - 13 x 8", Gr 5

- hex, 1/2 NC x 8 inch, weight mounting, not shown

8шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Not shown 1/2"-13, G5

8шт.
