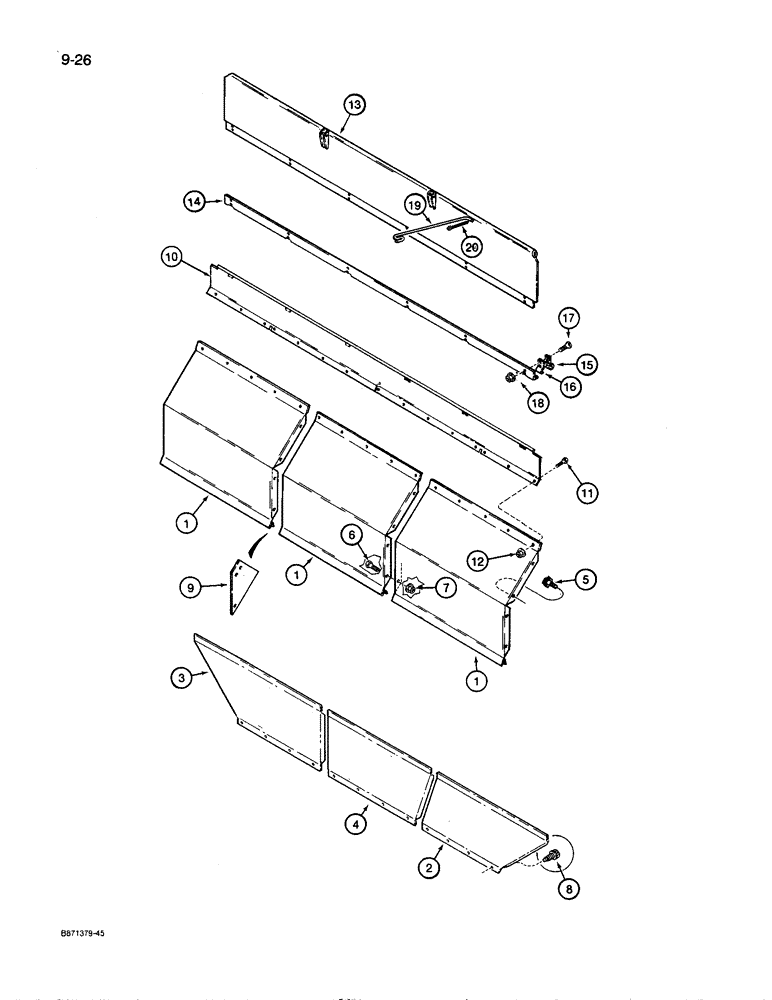

Запчасти Case IH 8600 (9-026) - HOPPER PANELS, COMBINATION GRAIN AND FERTILIZER (09) - CHASSIS/ATTACHMENTS

1

841625C1

PANEL

- hopper, upper

3шт.

2

89123C1

PANEL ASSY.

PANEL - hopper, lower, right-hand

1шт.

3

89124C1

PANEL ASSY.

PANEL - hopper, lower, left-hand

1шт.

4

89142C1

PANEL ASSY.

PANEL - hopper, lower, center

1шт.

5

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- hex, flange lock, 5/16 inch - 18 NC x 1/2 inch

8шт.

6

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex head, 5/16 inch - 18 NC x 3/4 inch

14шт.

7

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, flange lock, 5/16 inch - 18 NC

14шт.

8

850677C1

SCREW,Hex Wash Hd, 5/16"-18 x 1/2"

- hex head, self-tapping, 5/16 inch - 18 NC x 1/2 inch

12шт.

9

842948C1

SUPPORT

COVER - corner, hopper

2шт.

10

88857C1

PANEL ASSY.

PANEL - top support

1шт.

11

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

15шт.

12

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, flange lock, 5/16 inch - 18 NC

15шт.

13

96285C1

LID

- hopper, grain and fertilizer

1шт.

14

88841C1

SHIELD

COVER - hinge, hopper lid

1шт.

15

604404R2

CLAMP

- hinge, outer

5шт.

16

604403R2

CLAMP

- hinge, inner

5шт.

17

598796R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

BOLT - carriage head, 1/4 inch - 20 NC x 1 inch

10шт.

18

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex, flange lock, 1/4 inch - 20 NC

10шт.

19

91235C1

ROD ASSY.

ROD - support, hopper lid

2шт.

20

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.
