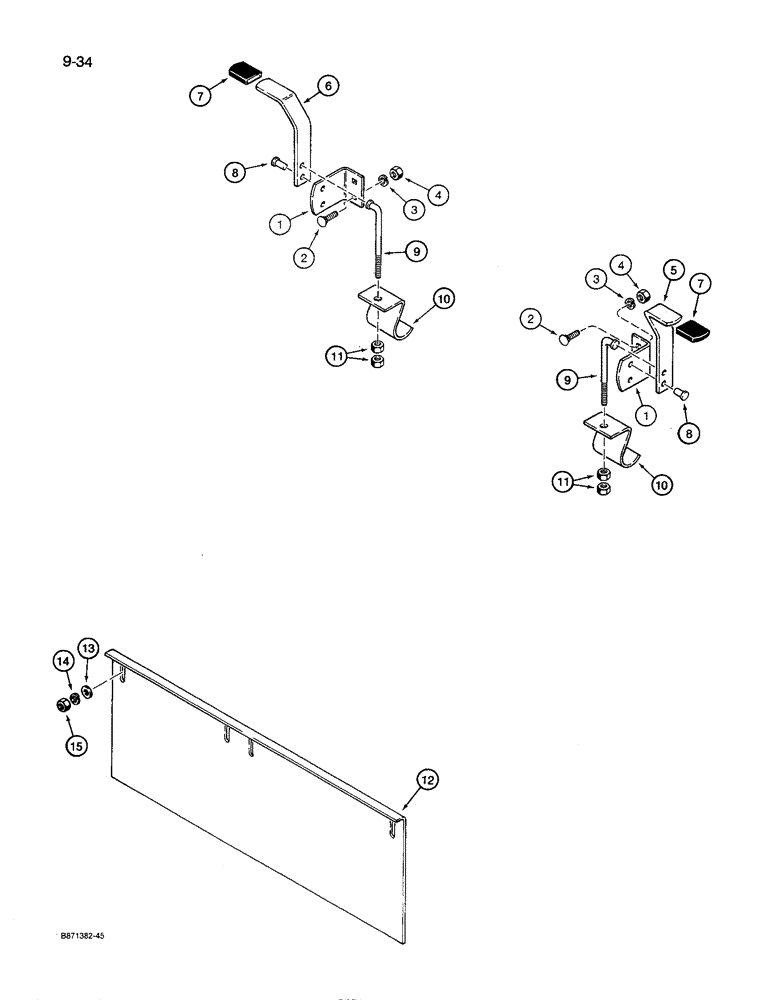

Запчасти Case IH 8600 (9-034) - FERTILIZER DROP BOTTOM LEVERS AND ACCESS PANELS (09) - CHASSIS/ATTACHMENTS

1

841811C1

ANGLE

BRACKET - mounting, Serial Range: lever-hopper

3шт.

2

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - carriage head, 5/16 NC x 3/4 inch

6шт.

3

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

4

9635082

NUT,5/16" - 18, Gr 5

6шт.

5

815377C1

LEVER

- drop bottom, short, left-hand and center

2шт.

6

841812C1

LEVER

- drop bottom, short, right-hand

1шт.

7

815378C1

GRIP

- rubber, lever

3шт.

8

118059

RIVET,FH, 3/8" x 9/16"

- flat head, 3/8 inch diameter x 9/16 inch long

3шт.

9

841810C1

BOLT

ROD - short, Serial Range: lever-clamp

3шт.

10

603497R1

CATCH

CLAMP - lever, at drop bottom

3шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

12

842756C1

DOOR

PANEL - access, fertilizer hopper

2шт.

13

619856R1

WASHER

- flat, 3/8 inch

6шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.
