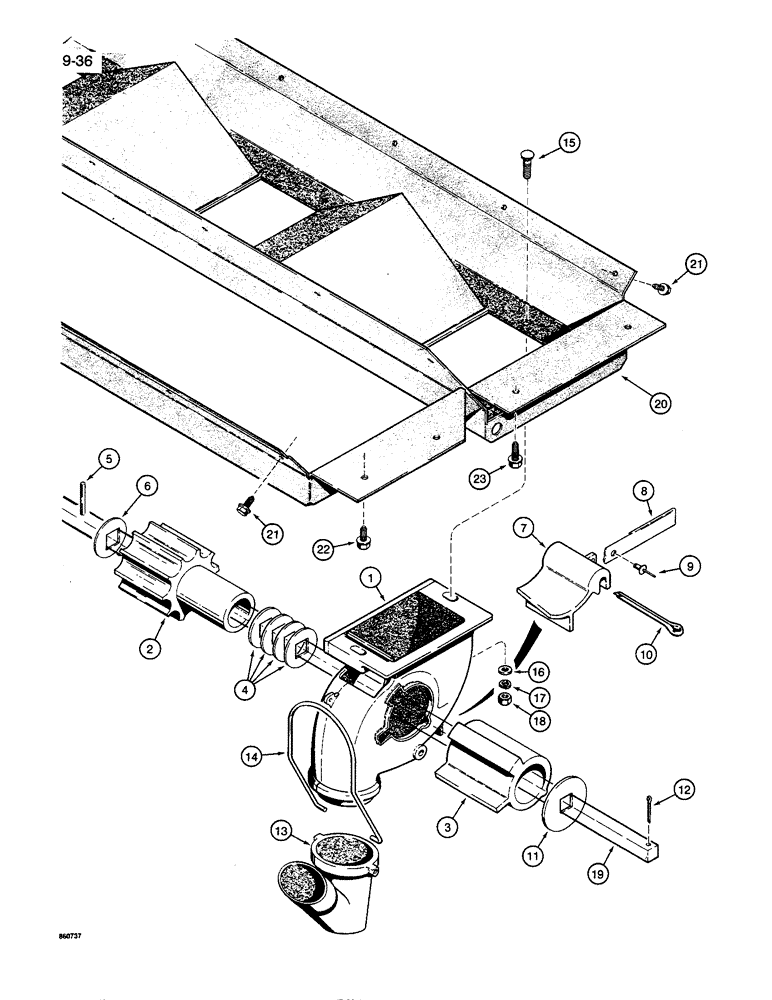

Запчасти Case IH 8600 (9-036) - GRAIN FEED PARTS, UNITS WITH 6-1/2 INCH ROW SPACING (09) - CHASSIS/ATTACHMENTS

842075C91

CUP ASSY.

CUP ASSEMBLY - grain feed

6шт.

1

842053C1

CUP

- grain feed

1шт.

2

841682C1

ROLL

ER - feed, fluted

1шт.

3

841681C1

BLOCK

- shutoff, feed

1шт.

4

97785C1

SQ HOLE WASHER

SHIM - washer, feed roller, 4 supplied with cup assembly

1шт.

5

842014C1

PIN

- feed roller

6шт.

6

603231R1

SPRING WASHER,16.67mm ID x 30.2mm OD x 0.71mm Thk

- spring, feed roller

6шт.

842076C91

BOTTOM

ASSEMBLY - dump, feed cup

6шт.

7

NSS

NOT SOLD SEPARAT

BOTTOM - dump, feed

1шт.

8

603178R1

LATCH

- dump bottom

1шт.

9

106883

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

10

23368R1

COTTER PIN,3/16" x 3 3/4"

Pin, Split (Cotter), 3/16" x 3 3/4"

6шт.

11

842560C1

SQ HOLE WASHER

- square, hardened, grain shaft

6шт.

12

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

6шт.

13

842190C2

EXTENSION

- feed cup

6шт.

14

841686C1

SPRING

RETAINER - spring, cup extension

6шт.

15

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - carriage head, 5/16 inch - 18 NC x 1-1/4 inch

12шт.

16

25708R1

WASHER

- flat, 5/16 inch

12шт.

17

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

18

120376

NUT,5/16"-18, G5

12шт.

19

841303C1

BAR

SHAFT - grain feed

1шт.

20

842101C1

PANEL ASSY.

PANEL - hopper, feed cup

1шт.

21

850679C1

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 3/4"

SCREW - hex head, self-tapping, 5/16 NC x 3/4 inch

24шт.

22

850679C1

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 3/4"

SCREW - hex head, self-tapping, 5/16 NC x 3/4 inch

6шт.

23

850684C1

SELF-TAP SCREW,5/16" - 18 x 1"

SCREW - hex head, self-tapping, 5/16 NC x 1 inch, support to panel

2шт.
