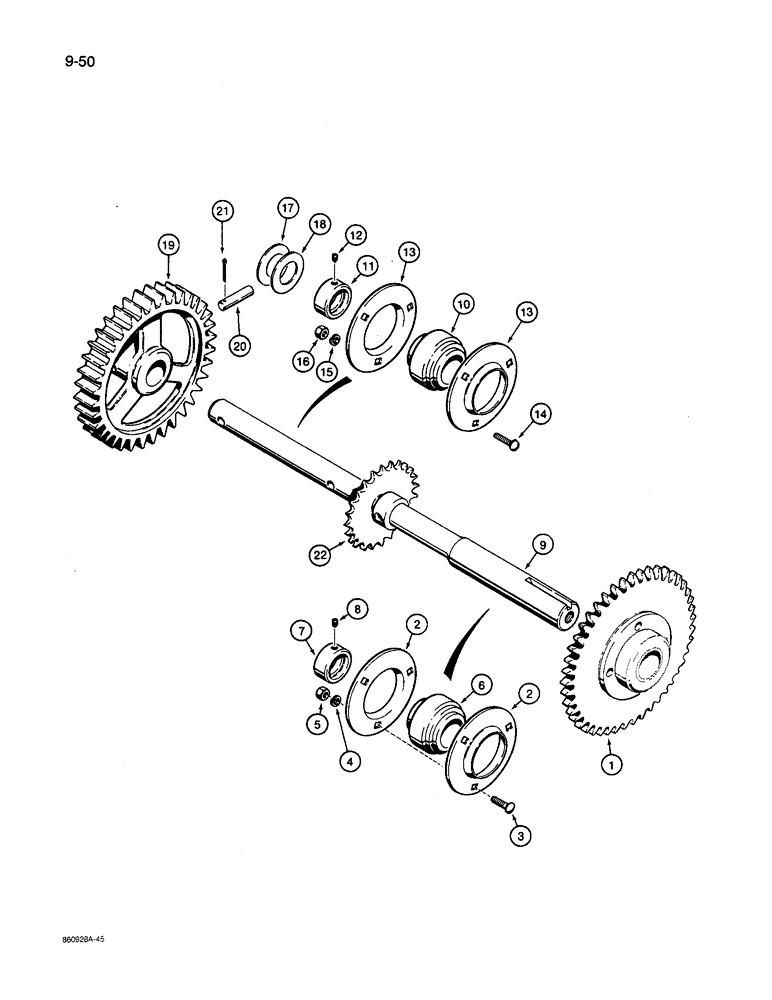

Запчасти Case IH 8600 (9-050) - MAIN DRIVE, CLUTCH SPROCKET TO GRAIN AND FERTILIZER DRIVES (09) - CHASSIS/ATTACHMENTS

1

841959C1

SPROCKET ASSY.

SPROCKET - clutch, main drive, 44 tooth, see page 9-45 for clutch components

1шт.

2

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

- bearing collar, outer

2шт.

3

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - carriage head, 3/8 inch - 16 NC x 1 inch

3шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

6

546267R91

BEARING ASSY

- outer, clutch shaft

1шт.

7

557995R11

COLLAR

ASSEMBLY - bearing lock

1шт.

8

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

- hex socket head, 5/16 inch - 18 NC x 5/16 inch

1шт.

9

841941C1

SHAFT

- clutch and main drive

1шт.

10

202311C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING - inner, clutch shaft

1шт.

11

455102R21

COLLAR

ASSEMBLY - bearing lock

1шт.

12

125735

SET SCREW,Hex Skt, 1/4"-20 x 3/8"

1шт.

13

462360R1

FLANGED BEARING

- bearing collar, inner

2шт.

14

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - carriage head, 5/16 inch - 18 NC x 1 inch

3шт.

15

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

16

9635082

NUT,5/16" - 18, Gr 5

3шт.

17

20704R1

WASHER

- special, between inner bearing and drive gear, 0.105 inch (2.67 mm) thick

1шт.

18

591715R1

WASHER

- special, between inner bearing and drive gear, 0.054 inch (1.37 mm) thick

1шт.

19

842204C1

GEAR

- drive, clutch shaft, 34 tooth

1шт.

20

379990R1

HEADED PIN

PIN - gear to clutch shaft

1шт.

21

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

22

88882C1

SPROCKET ASSY.

SPROCKET - drive, fertilizer jackshaft, see page 9-55 for related parts

1шт.
