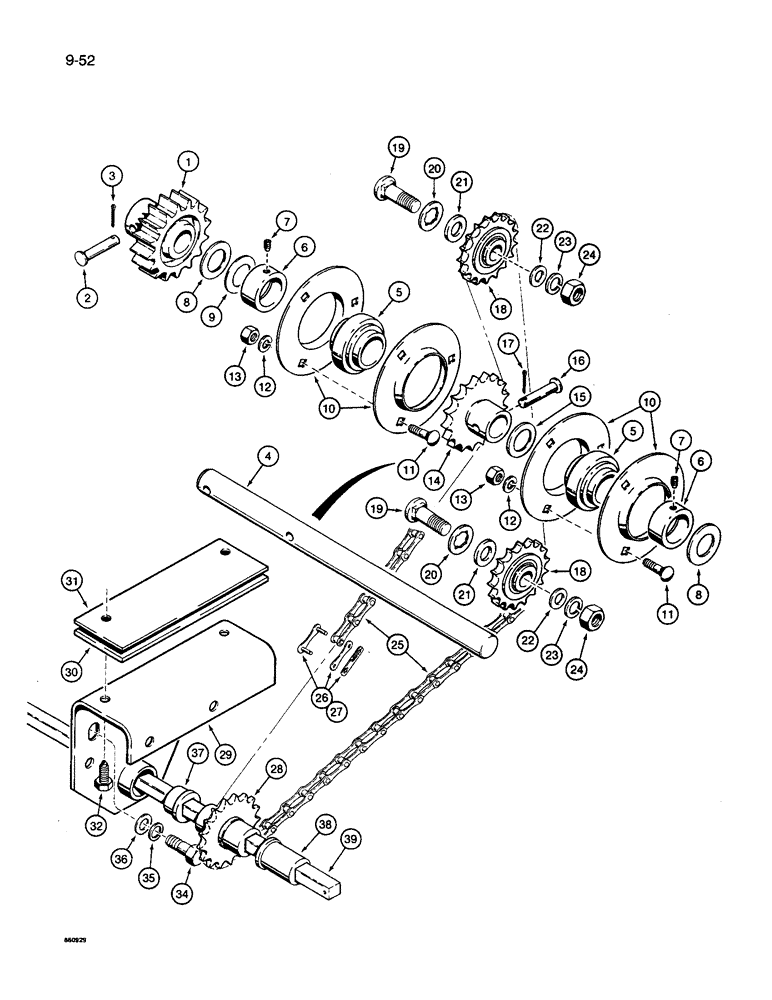

Запчасти Case IH 8600 (9-052) - GRAIN DRIVE PARTS (09) - CHASSIS/ATTACHMENTS

1

842203C1

GEAR

- driven, grain shaft, 16 tooth

1шт.

2

379990R1

HEADED PIN

PIN - gear to grain shaft

1шт.

3

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

4

841333C1

SHAFT

- grain drive

1шт.

5

202311C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING - grain drive shaft

2шт.

6

455102R21

COLLAR

ASSEMBLY - bearing lock

2шт.

7

125735

SET SCREW,Hex Skt, 1/4"-20 x 3/8"

1шт.

8

20704R1

WASHER

- special, between inner bearing and driven gear, 0.105 inch (2.67 mm) thick

1шт.

9

591715R1

WASHER

- special, between inner bearing and driven gear, 0.054 inch (1.37 mm) thick

1шт.

10

462360R1

FLANGED BEARING

- bearing collar

4шт.

11

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - carriage head, 5/16 inch - 18 NC x 1 inch

6шт.

12

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

9635082

NUT,5/16" - 18, Gr 5

6шт.

14

841328C1

SPROCKET ASSY.

SPROCKET - grain drive

1шт.

15

591715R1

WASHER

- special, sprocket to bearing, 0.054 inch (1.37 mm) thick

1шт.

16

24709R1

HEADED PIN,3/8" x 1 3/4"

PIN, HEADED, , Drive sprocket to shaft 3/8" x 1 3/4"

1шт.

17

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

18

841335C1

SPROCKET ASSY.

SPROCKET - idler and tightener, grain shaft drive chain

2шт.

19

598820R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

BOLT - carriage head, 5/8 inch - 11 NC x 2-1/2 inch

2шт.

20

21783R1

SQ HOLE WASHER,41/64" x 1 1/2" x .105", Sq Hole

- flat, 5/8 inch, for square shoulder bolt

2шт.

21

464623R1

WASHER

- flat, 5/8 inch ID x 0.105 inch (2.67 mm) thick

1шт.

22

21782R1

WASHER

- flat, 5/8 inch ID x 0.054 inch (1.37 mm) thick

1шт.

23

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

24

129-107

NUT,5/8"-11, G5

2шт.

25

REF

INSTRUCTION

CHAIN - drive, grain shaft, 49 links, cut from 569088R91 bulk roll

1шт.

26

457113R91

CHAIN LINK

LINK - master, chain, if used

1шт.

27

457114R91

CHAIN LINK

LINK - offset, chain, if used

1шт.

28

841342C1

SPROCKET ASSY.

SPROCKET - driven, grain shaft, 21 tooth

1шт.

29

841338C1

SUPPORT

- inner, grain shaft

1шт.

30

842033C1

SHIM

- support to hopper, 0.048 inch (1.20 mm) thick

1шт.

31

842242C1

SHIM

- support to hopper, 0.030 inch (0.76 mm) thick

1шт.

32

850684C1

SELF-TAP SCREW,5/16" - 18 x 1"

BOLT - hex head, self-tapping, 3/8 inch - 16 NC x 1 inch

2шт.

34

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

36

619856R1

WASHER

- flat, 3/8 inch

1шт.

37

841345C1

BRONZE BUSHING

BUSHING - shaft, inner

1шт.

38

842788C1

BRONZE BUSHING

BUSHING - shaft, outer

1шт.

39

REF

INSTRUCTION

SHAFT - grain cup drive, see reference number 19, pages 9-37 and 9-39 for correct shaft

1шт.
