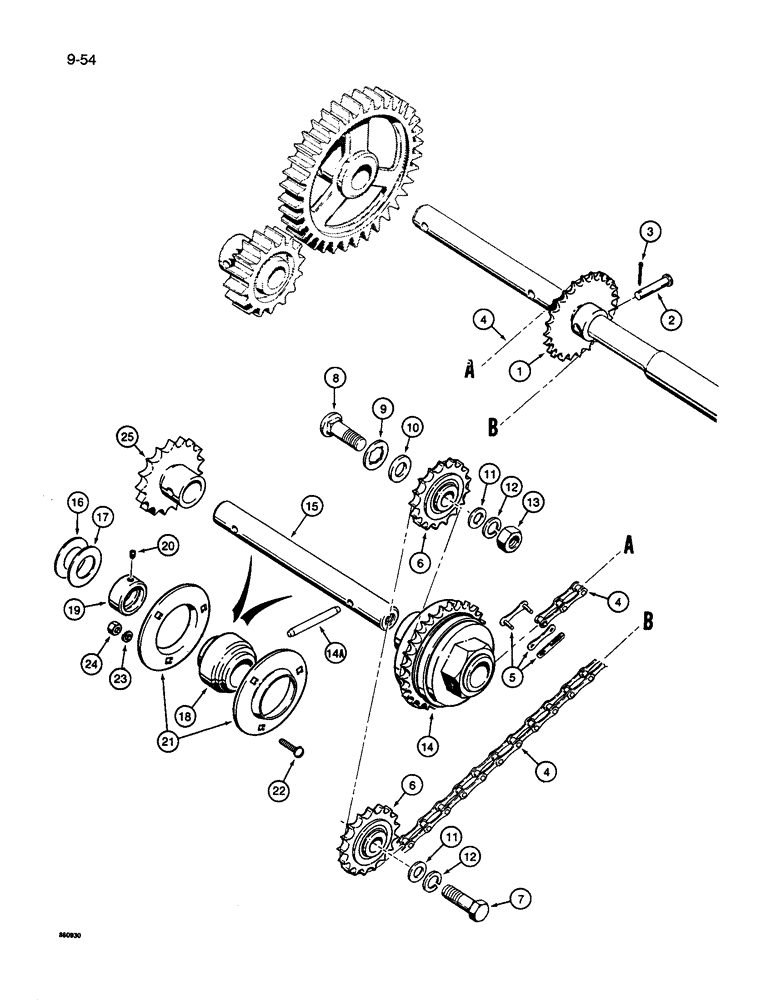

Запчасти Case IH 8600 (9-054) - FERTILIZER DRIVE PARTS, MAIN DRIVE TO FERTILIZER JACKSHAFT (09) - CHASSIS/ATTACHMENTS

1

89161C1

SPROCKET ASSY.

SPROCKET - drive, jackshaft, 22 tooth

1шт.

2

24709R1

HEADED PIN,3/8" x 1 3/4"

PIN, HEADED, , Sprocket to main drive shaft 3/8" x 1 3/4"

1шт.

3

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

4

REF

INSTRUCTION

CHAIN - drive, jackshaft, 55 links, cut from 569088R91 bulk roll

1шт.

5

457113R91

CHAIN LINK

LINK - master, chain

1шт.

6

841335C1

SPROCKET ASSY.

SPROCKET - idler and chain tightener

2шт.

7

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

1шт.

8

441452R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

BOLT - carriage head, 5/8 inch - 11 NC x 2 inch

1шт.

9

21783R1

SQ HOLE WASHER,41/64" x 1 1/2" x .105", Sq Hole

- special, square shoulder

1шт.

10

21782R1

WASHER

- flat, 5/8 inch ID x 0.054 inch (1.37 mm) thick

1шт.

11

464623R1

WASHER

- flat, 5/8 inch ID x 0.105 inch (2.67 mm) thick

1шт.

12

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

13

129-107

NUT,5/8"-11, G5

1шт.

14

REF

INSTRUCTION

CLUTCH - slip, fertilizer drive, see page 9-57 for components

1шт.

14a

616253R1

LOCK PIN,5/16" x 1 5/8", Slotted

Pin, 5/16" x 1 5/8", Slotted

1шт.

15

89160C1

SHAFT

JACKSHAFT - fertilizer drive

1шт.

16

591715R1

WASHER

- flat, 1 inch ID x 0.054 inch (1.37 mm) thick

1шт.

17

20704R1

WASHER

- flat, 1 inch ID x 0.105 inch (2.67 mm) thick

1шт.

18

202311C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING - support, jackshaft

2шт.

19

455102R21

COLLAR

ASSEMBLY - bearing lock

2шт.

20

125735

SET SCREW,Hex Skt, 1/4"-20 x 3/8"

1шт.

21

462360R1

FLANGED BEARING

- bearing

4шт.

22

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - carriage head, 5/16 inch - 18 NC x 1 inch

6шт.

23

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

24

9635082

NUT,5/16" - 18, Gr 5

6шт.

25

88882C1

SPROCKET ASSY.

SPROCKET - drive, fertilizer shaft, 18 tooth, see page 9-59 for additional fertilizer drive parts

1шт.
