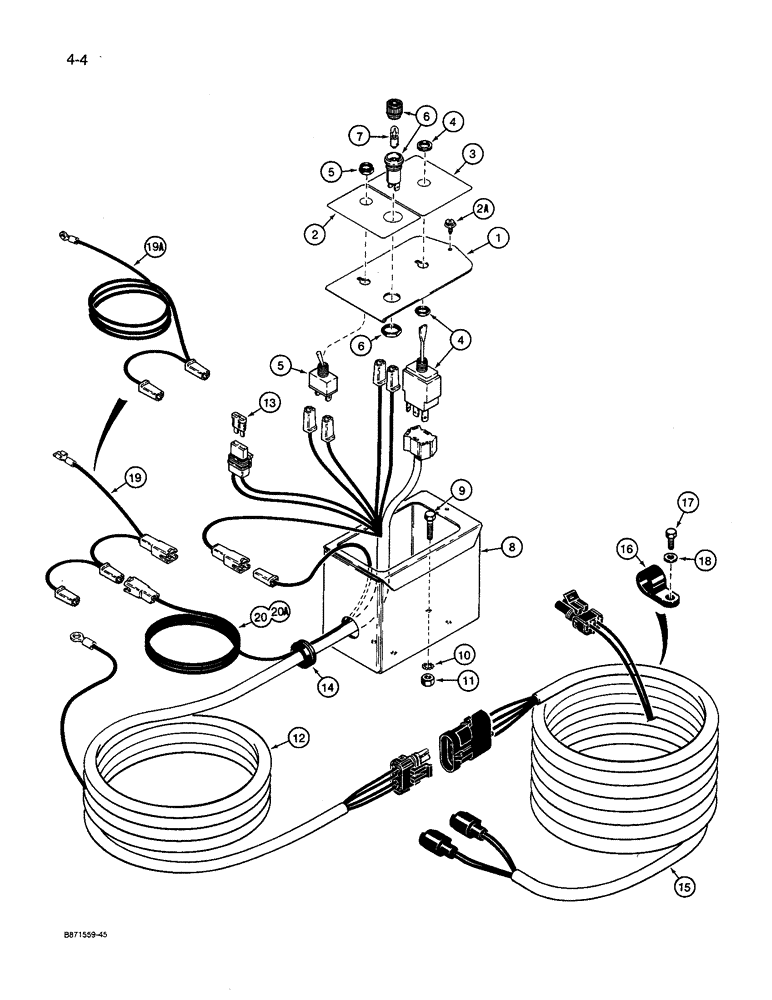

Запчасти Case IH 8600 (4-04) - ROW MARKER AND HITCH LOCKOUT CONTROLS (04) - ELECTRICAL SYSTEMS

1958195C1

PLATE

COVER ASSEMBLY - control box

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - control box

1шт.

2

1958197C1

PRODUCT GRAPHIC

DECAL - controls, hitch stabilizer lockout

1шт.

2a

260-1446

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

SCREW - self-tapping, slotted hex washer, No. 8 NC x 3/8 inch

1шт.

3

1958259C1

DECAL

- controls, row marker

1шт.

4

121542C1

SWITCH

- control, row marker, includes mounting hardware

1шт.

5

92007C1

SWITCH

- control, hitch lockout, includes mounting hardware

1шт.

6

121815C91

LAMP

ASSEMBLY - indicator, hitch lockout

1шт.

7

200557H1

BULB,C2V, #1815, 14V

- lamp, indicator, No. 1815

1шт.

8

116259C3

BOX

- control, switch and indicator lamp

1шт.

9

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16" - 18 NC x 1", plated

2шт.

10

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

12

92005C2

HARNESS

- row marker and hitch lockout, at control box

1шт.

13

131222C1

FUSE

- electrical, 10 amp

1шт.

14

169851C1

GROMMET

- harness, strain relief

1шт.

15

92004C1

HARNESS

- row marker and hitch lockout, to valve solenoids

1шт.

16

1251744C2

CLAMP

- harness

4шт.

17

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

Harness clamps to weldnuts Hex, 3/8"-16 x 1/2", G5, Full Thd

4шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 3/8"

4шт.

19

A181760

CABLE

WIRE - cab connector, used with Case IH two-wheel drive tractor

1шт.

19a

A181753

CABLE

WIRE - cab connector, used with Case IH four-wheel drive tractor

1шт.

20

A181761

CABLE

WIRE - marker control, 80 inch (2030 mm) long, used with Case IH two-wheel drive tractor

1шт.

20a

A181758

CABLE

WIRE - marker control, 100 inch (2540 mm) long, used with Case IH four-wheel drive tractor

1шт.

21

149506C1

CABLE

WIRE AND FUSE ASSEMBLY - power supply, used with older Case and International Harvester and competitive tractors, not shown

1шт.

22

111323C1

CABLE

WIRE - power supply, 8 inch (203 mm) long, 16 gauge, used with older Case and International Harvester and competitive tractors, not shown

1шт.

23

111322C1

CABLE

WIRE - power supply, 8 inch (203 mm) long, 12 gauge, used with older Case and International Harvester and competitive tractors, not shown

1шт.
