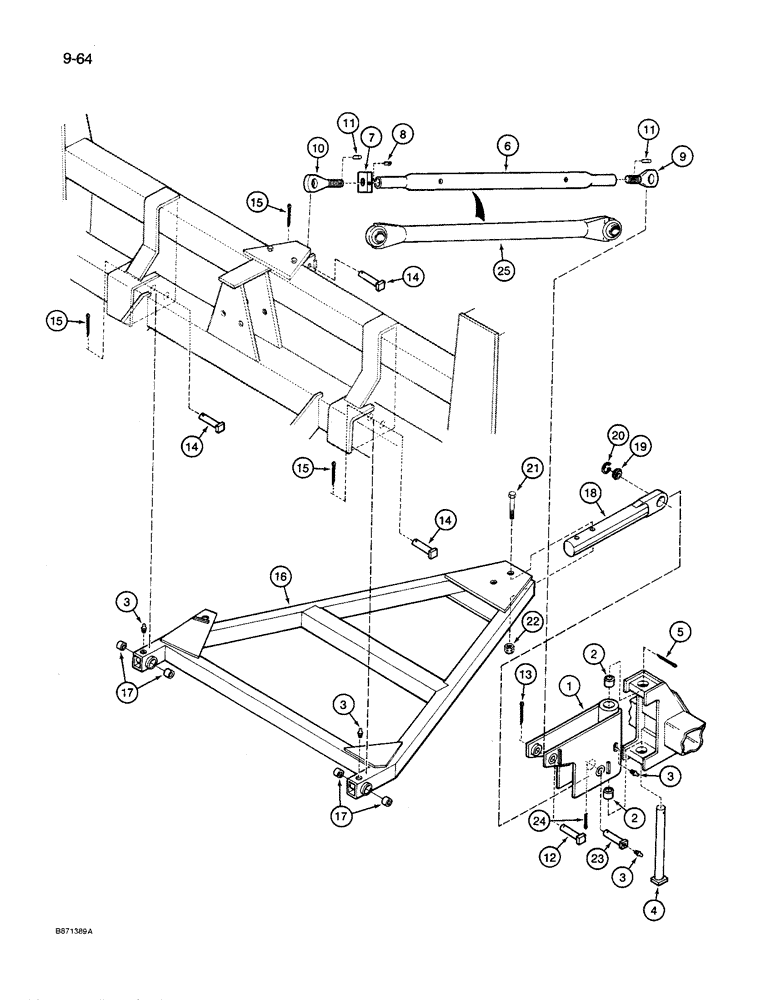

Запчасти Case IH 8600 (9-064) - TOOLBAR HITCH PARTS (09) - CHASSIS/ATTACHMENTS

1

96098C1

PIVOT ASSY.

HINGE - toolbar hitch, at hopper frame

1шт.

2

1337268C1

BUSHING

- hinge

2шт.

3

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 inch NPT

4шт.

4

1336393C1

PIN ASSY.

PIN - pivot, hinge to hopper frame

1шт.

5

108658

PIN,5/16" x 2 1/2"

Split (Cotter), 5/16" x 2 1/2"

1шт.

6

96213C1

TUBE

- adjustment, upper, at toolbar

1шт.

Ref. 6 thru 11 are replaced by P/N 1344825C1 non-adjustable link, see Ref 25.

1шт.

7

97561C1

NUT

BLOCK - locking, adjustment screw

1шт.

Ref. 6 thru 11 are replaced by P/N 1344825C1 non-adjustable link, see Ref 25.

1шт.

8

85-820

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

SCREW - set, hex socket head, 1/2 inch - 13 NC X 1-1/4 inch

1шт.

Ref. 6 thru 11 are replaced by P/N 1344825C1 non-adjustable link, see Ref 25.

1шт.

9

1252109C3

LIFT LINK END ASSY

- toolbar adjustment, left-hand thread

1шт.

Ref. 6 thru 11 are replaced by P/N 1344825C1 non-adjustable link, see Ref 25.

1шт.

10

1331858C1

SOCKET

SCREW - toolbar adjustment, right-hand thread

1шт.

Ref. 6 thru 11 are replaced by P/N 1344825C1 non-adjustable link, see Ref 25.

1шт.

11

30797R1

PIN,M6 x 36, Coiled

- roll, 6 mm x 36 mm long

2шт.

Ref. 6 thru 11 are replaced by P/N 1344825C1 non-adjustable link, see Ref 25.

1шт.

12

1960442C1

PIN

- adjustment screw, 4-1/2 inch (114 mm) dimension from plate to cotter pin hole

1шт.

13

32-2032

COTTER PIN,5/16" x 2"

PIN, SPLIT (COTTER), 5/16" x 2"

1шт.

14

1336391C1

PIN ASSY.,1 1/4" x 109mm

PIN - adjustment screw and hitch frame to toolbar, 4-1/8 inch (106 mm) dimension from plate to cotter pin hole

3шт.

15

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

3шт.

16

96218C1

FRAME

ASSEMBLY - hitch, Serial Range: hinge-toolbar

1шт.

17

96223C1

BUSHING

- hitch frame, at toolbar

4шт.

18

1960569C1

BAR

HITCH - tool bar frame, at hinge

1шт.

19

1336410C1

BUSHING

- hitch, self-aligning

1шт.

20

641207R1

SNAP RING,2.44", Int, #244

Ring, Snap, , bushing 2.44", Int, #244

1шт.

21

26632R1

BOLT,Hex, 1" - 8 x 6 1/2", Gr 8

- hex head, 1 inch - 8 NC x 6-1/2 inch, grade 8

2шт.

22

9413986

LOCK NUT,1"-8, GC

NUT - hex, self-locking, 1 inch - 8 NC

2шт.

23

1960443C1

PIN

- pivot, hitch, Serial Range: frame-hinge

1шт.

24

32-2032

COTTER PIN,5/16" x 2"

PIN, SPLIT (COTTER), 5/16" x 2"

1шт.

25

1344825C1

TUBE,1372 mm Length

LINK upper toolbar, non-adjustable, replaces: Ref. 6 thru 11

1шт.
