(8.190.1) - MOUNTING HARDWARE FOR STEALTH OPENERS

Запчасти Case IH ATX400 (8.190.1) - MOUNTING HARDWARE FOR STEALTH OPENERS Related Equipment

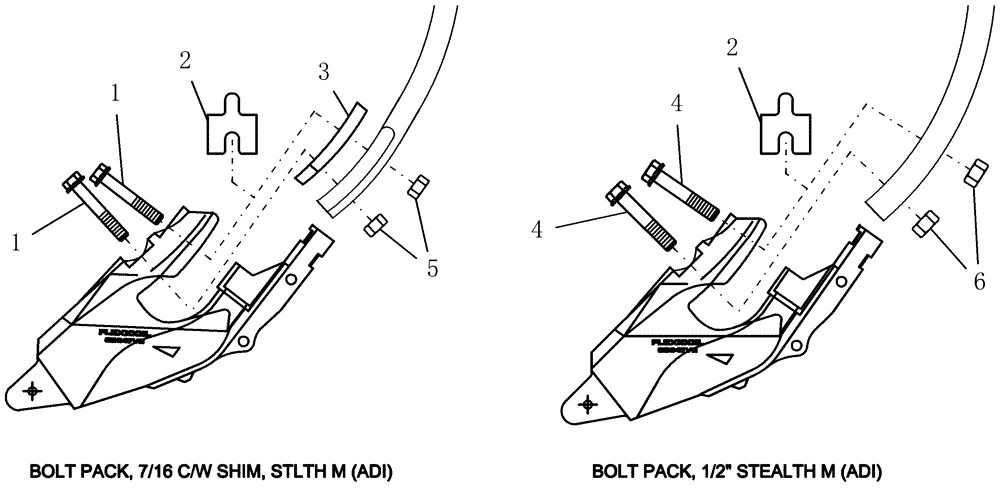

Схема запчастей Case IH ATX400 - (8.190.1) - MOUNTING HARDWARE FOR STEALTH OPENERS Related Equipment
2
4
6
1
4
1
5
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

21481

BOLT

fg 7/16"-14 x 2 3/4" G8 hwh sfl

1шт.

2

GD-808

SHIM

angle adjustment

1шт.

3

87506240

SHIM

adapter, Serial Range: 47º-50º

1шт.

4

21482

BOLT

fg 1/2"-13 x 2 3/4" G8 hwh sfl

2шт.

5

87343989

NUT

7/16"-14, heavy, GC

1шт.

6

432631A1

NUT

1/2"-13, heavy, GC

1шт.
