(02.030.1) - HYDRAULIC, CYLINDER 5" X 30"

Запчасти Case IH ATX700 (02.030.1) - HYDRAULIC, CYLINDER 5" X 30" (07) - HYDRAULICS

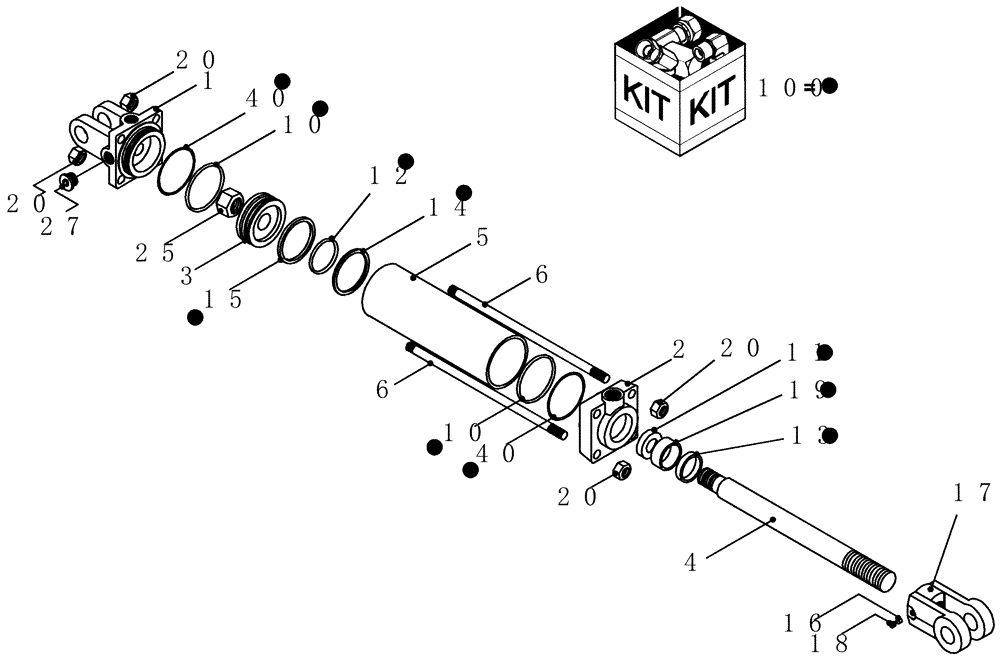

Схема запчастей Case IH ATX700 - (02.030.1) - HYDRAULIC, CYLINDER 5" X 30" (07) - HYDRAULICS
10
5
18
2
20
17
20
3
11
27
6
14
10
100
6
16
13
40
12
19
40
1
25
20
4
15
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

87504468

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 762mm Stroke

5" x 30" mon 3000 psi without pins

1шт.

1

87409428

HEAD

cylinder base 5" bore; 2, 3/4"-16 orb ports

1шт.

2

87409416

HEAD

cylinder front 5" bore x 2" rod

1шт.

3

87409467

PISTON

cylinder, 5" bore Monarch #494760

1шт.

4

8965

SHAFT

cylinder, 5" x 30" Monarch 2 dia (#437202)

1шт.

5

8966

BARREL,5.00" DIA x 30.00" L

cylinder, 5" x 30" Monarch (#437282)

1шт.

6

8967

TIE-ROD

cylinder 30 Monarch 3/4" (#492332)

4шт.

17

87504682

CLEVIS,1-1/2"

cylinder cast

1шт.

16

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

18

2874

SET SCREW

3/8"-16 x 1/2"

1шт.

20

80001689

NUT

3/4"-16, G5

8шт.

25

232-46324

LOCK NUT,1 1/2"-12, GC

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

100

87403963

SEAL KIT

hyd cylinder 5" Monarch with 2" rod

1шт.
