(02.060.1) - HYDRAULIC, CYLINDER 3.5" X 24"

Запчасти Case IH ATX700 (02.060.1) - HYDRAULIC, CYLINDER 3.5" X 24" (07) - HYDRAULICS

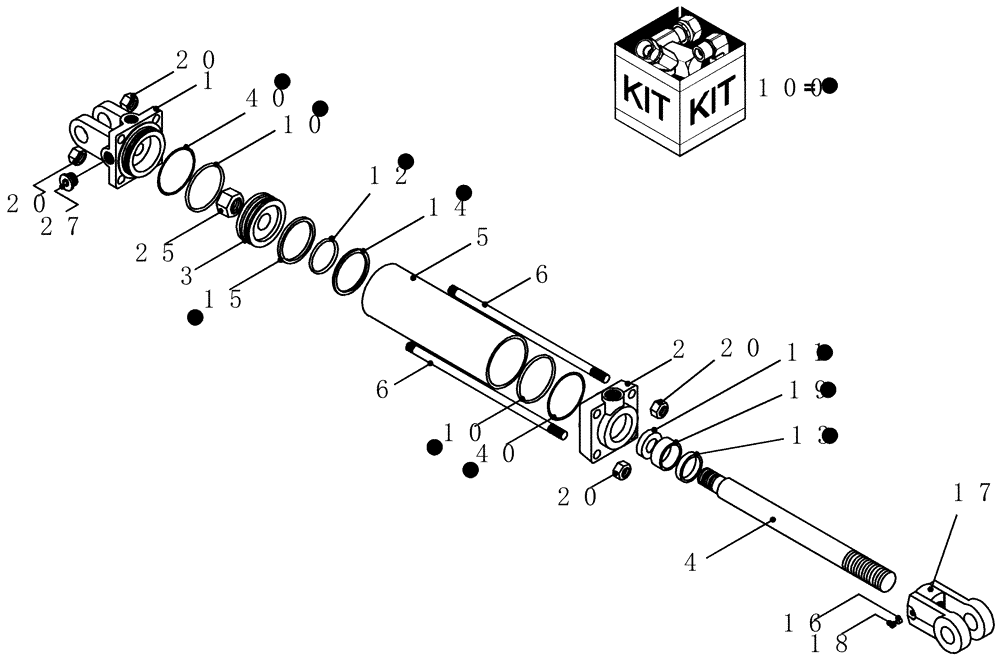

Схема запчастей Case IH ATX700 - (02.060.1) - HYDRAULIC, CYLINDER 3.5" X 24" (07) - HYDRAULICS
12
19
15
11
6
10
20
25
27
16
3
5
100
20
18
13
20
10
20
6
17
4
40
14
40
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

87505357

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 609.6mm Stroke

3 1/2" x 24" 3000 psi no pins

1шт.

1

87409417

HEAD

cylinder front 3 1/2" bore x 1 1/2" rod

1шт.

2

87409430

HEAD

cylinder base 3 1/2" bore

1шт.

3

87409481

PISTON

cylinder 3 1/2" bore Monarch #494738

1шт.

4

87582276

SHAFT

1 1/2" x 24" hydraulic cylinder

1шт.

5

87582277

BARREL,3.5 mm DIA x 24 mm L

3 1/2" x 24" cylinder

1шт.

6

87409493

BOLT

cylinder tie rod 4" x 24"

4шт.

16

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

17

87409387

CLEVIS,1 -1/4" - 12

cylinder 1" pin 1 1/4"-12 rod Monarch #492652

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

20

408

NUT,5/8" - 18, Gr 5

8шт.

25

87314800

LOCK NUT

1"-14, GA

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

100

84137861

SEAL KIT

3 1/2"

1шт.
