(02.070.1) - HYDRAULIC, CYLINDER 2" X 2"

Запчасти Case IH ATX700 (02.070.1) - HYDRAULIC, CYLINDER 2" X 2" (07) - HYDRAULICS

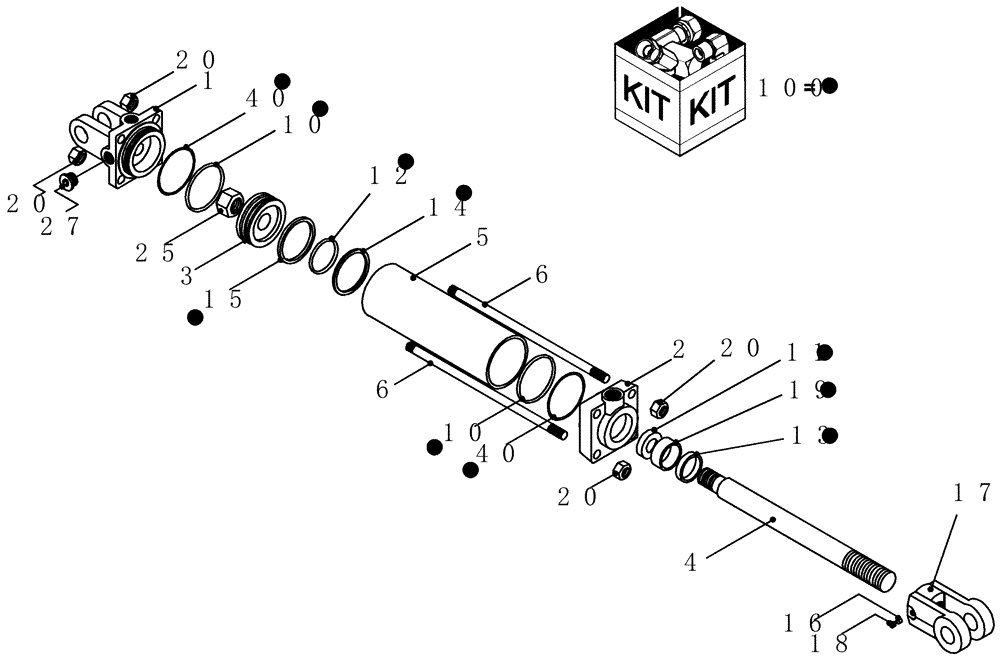

Схема запчастей Case IH ATX700 - (02.070.1) - HYDRAULIC, CYLINDER 2" X 2" (07) - HYDRAULICS
13
14
5
10
40
20
27
25
15
16
11
12
40
18
6
20
17
4
6
2
100
20
20
10
1
3
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

87567768

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 50.8mm Stroke

2" x 2"

1шт.

1

87506428

CYLINDER END CAP

2" Monarch 8orb ports (#492672)

1шт.

2

86983878

CYLINDER END CAP

rod 2" x 12" Monarch 2" x 1 1/8" rod 8orb (#492665)

1шт.

3

87582282

PISTON

2" bore

1шт.

4

87582281

SHAFT

2" Monarch 1 1/8"

1шт.

5

87582280

BARREL

2" x 2" Monarch

1шт.

6

87582279

TIE-ROD

3/8"

4шт.

16

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

17

87449358

CLEVIS

cylinder 1" pin Monarch 1 1/8"-12 rod

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

20

9628503

NUT,3/8"-16, G5

8шт.

25

425038A1

NUT

cylinder piston 3/4"-16, GA

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

100

25833050

SEAL KIT

2" x 2" Monarch cylinder

1шт.
