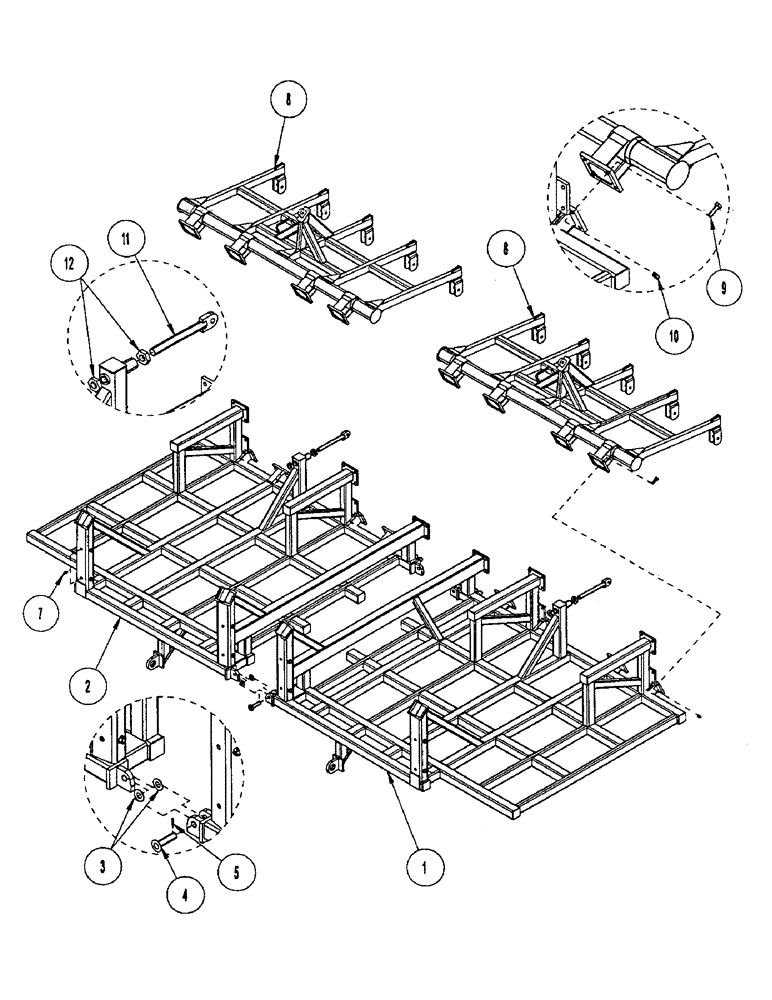

Запчасти Case IH CONCORD (B02) - MAIN FRAME WITH ROCKSHAFT AND WHEEL GANGS, 2010, FOUR RANK, DISCONTINUED

1

1020558

FRAME

L.H.: 2010-4R

1шт.

2

1020559

FRAME

R.H.: 2010-4R

1шт.

3

1016950

WASHER

flat: 1.25, SAE

1шт.

4

1015235

PIN

1.25 OD HINGE YZD

2шт.

5

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

2шт.

6

1013589

PRODUCT GRAPHIC

DECAL DANGER (Not shown)

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

12шт.

8

1030098

FRAME

WHEEL GANG ASSEMBLY

2шт.

9

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

32шт.

10

232-14412

NUT,3/4"-10, GB

.75 UNC YZD NYLON INS

32шт.

11

1017157

ADJUSTMENT ROD

ROD/W ADJUSTMENT 1.5 OD

2шт.

12

425-1024

NUT,1 1/2"-6, G5

1.5 UNC GR5 YZD

4шт.
