(B02) - MAIN FRAME WITH ROCKSHAFT & WHEEL GANGS, 2012, 3 & 4 RANK, DISCONTINUED

Запчасти Case IH CONCORD (B02) - MAIN FRAME WITH ROCKSHAFT & WHEEL GANGS, 2012, 3 & 4 RANK, DISCONTINUED

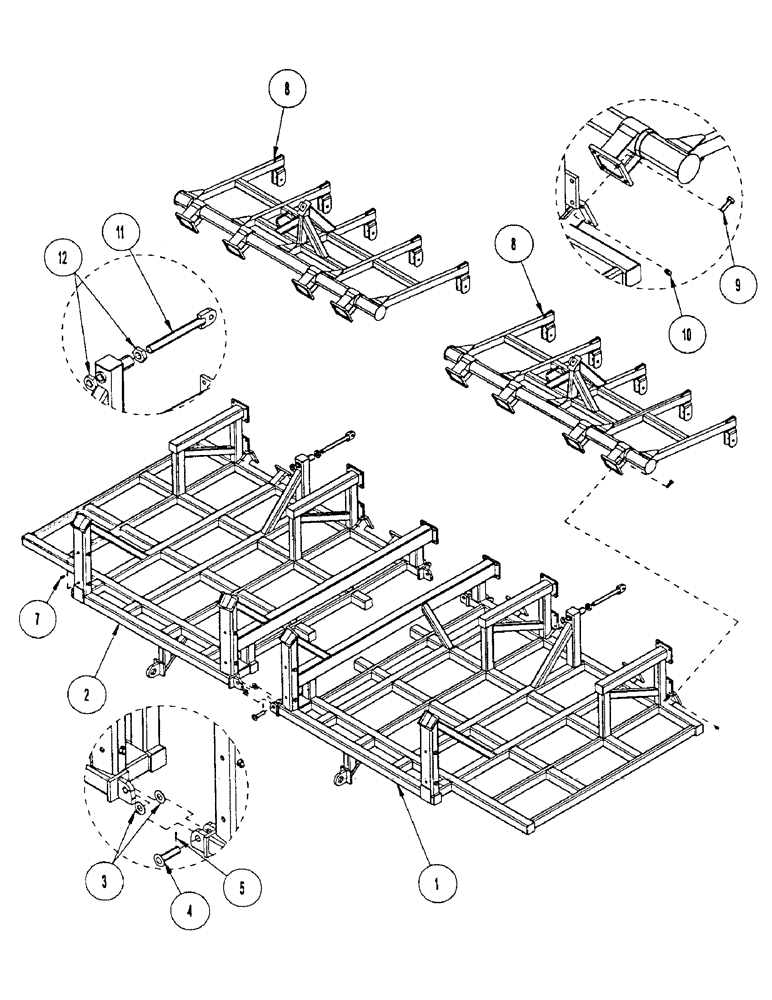

Схема запчастей Case IH CONCORD - (B02) - MAIN FRAME WITH ROCKSHAFT & WHEEL GANGS, 2012, 3 & 4 RANK, DISCONTINUED
9
7
2
12
8
5
10
8
4
1
11
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1018671

FRAME

L.H., 3 rank

1шт.

1

1027195

FRAME ASSY

FRAME, L.H., 4 rank

1шт.

2

1018670

FRAME

R.H., 3 rank

1шт.

2

1027194

FRAME

R.H., 4 rank

1шт.

3

1016950

WASHER

flat: 1.25, SAE

1шт.

4

1015235

PIN

1.25 OD HINGE YZD

2шт.

5

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

2шт.

6

1013589

PRODUCT GRAPHIC

DECAL DANGER (Not shown)

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

12шт.

8

1030099

ASSEMBLY

WHEEL GANG ASSEMBLY

2шт.

8

CON1018673

FRAME ASSY

WHEEL GANG ASSEMBLY (Replaced by 1030099)

2шт.

9

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

32шт.

10

232-14412

NUT,3/4"-10, GB

.75 UNC YZD NYLON INS

32шт.

11

1017157

ADJUSTMENT ROD

ROD/W ADJUSTMENT 1.5 OD

2шт.

12

425-1024

NUT,1 1/2"-6, G5

1.5 UNC GR5 YZD

4шт.
