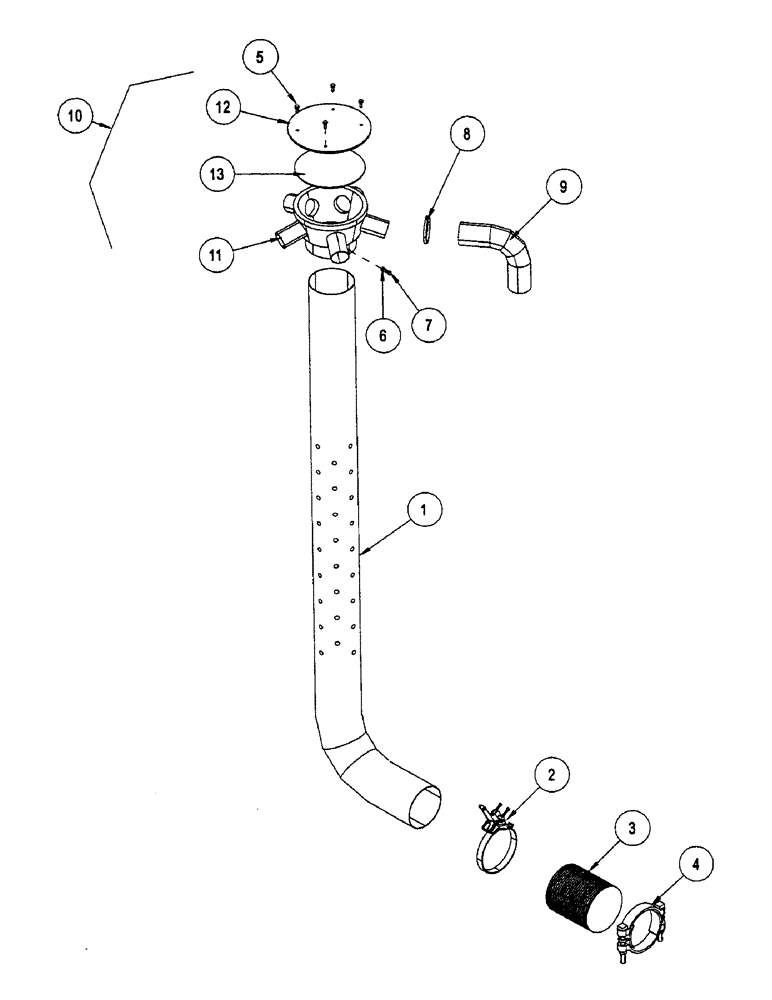

Запчасти Case IH CONCORD (B40) - PRIMARY MANIFOLD

1

1033291

TUBE,127 mm Diameter, 1638.3 mm Length

WLDMT - primary manifold tube

1шт.

2

1013259

CLAMP

WLDMT - clamp

1шт.

3

1021326

HOSE,5.00" ID x 150.00"

Rear-Tow 5.00" ID x 150.00"

1шт.

1032274

HOSE,5.00" ID x 1200.00"

PVC Front-Tow 5.00" ID x 1200.00"

1шт.

4

1026541

CLAMP,127mm - 146.05mm

- #600: 5.00-5.75 dia.

1шт.

5

1018047

BOLT

BOLT - hex: .25 x .63 NC GR5 ZP

4шт.

6

1013518

LOCK NUT

NUT - jam: .25 NC GR2 ZP

2шт.

7

1013208

SET SCREW

SCREW - set: C-P .25 x 1.00 NC GR8

2шт.

8

1026358

CLAMP

- hose: #16 0.81-1.50

1шт.

9

1032279

HOSE,2.50" ID

PVC-B 2.50" ID

1шт.

10

1013165

COVER

MANIFOLD - w/cover: prim 6 port 2.50 (incl 5, 6, 7, 11, 12) , FRONT AND REAR -TOW SINGLE 80, 64, 48, 32 RUN 6-PORT - 40'

1шт.

11

1013169

COVER

MANIFOLD - w/tubes: prim 6 port 2.50, FRONT AND REAR -TOW SINGLE 80, 64, 48, 32 RUN 6-PORT - 40'

1шт.

12

1013039

COVER

FRONT AND REAR -TOW SINGLE 80, 64, 48, 32 RUN 6-PORT - 40'

1шт.

10

290172A1

TUBE ASSY.

MANIFOLD - cover: prim 8prt 2.50 , FRONT AND REAR TOW SINGLE 100, 80, 40, RUN 8 PORT - 50'

1шт.

10

1022427

MANIFOLD - w/cover: prim 4prt 2.50 (incl. 5, 6, 7, 11, 12) , FRONT AND REAR TOW SINGLE 48 & 32 RUN 4 PORT (S.N. CBK0015002 - CBK0015028)

1шт.

11

1012428

COVER

MANIFOLD - w/tubes: prim 4prt 2.50 , FRONT AND REAR TOW SINGLE 48 & 32 RUN 4 PORT (S.N. CBK0015002 - CBK0015028)

1шт.

12

1013039

COVER

(2 1/2" 4 port) , FRONT AND REAR TOW SINGLE 48 & 32 RUN 4 PORT (S.N. CBK0015002 - CBK0015028)

1шт.

13

1022774

GASKET

CUSHION - manifold .25 x 6.50 , FRONT AND REAR TOW SINGLE 48 & 32 RUN 4 PORT (S.N. CBK0015002 - CBK0015028)

1шт.
