(8-12) - HYDRAULIC LIFT CYLINDER 5 INCH BORE X 30 INCH STROKE

Запчасти Case IH NFX (8-12) - HYDRAULIC LIFT CYLINDER 5 INCH BORE X 30 INCH STROKE (08) - HYDRAULICS

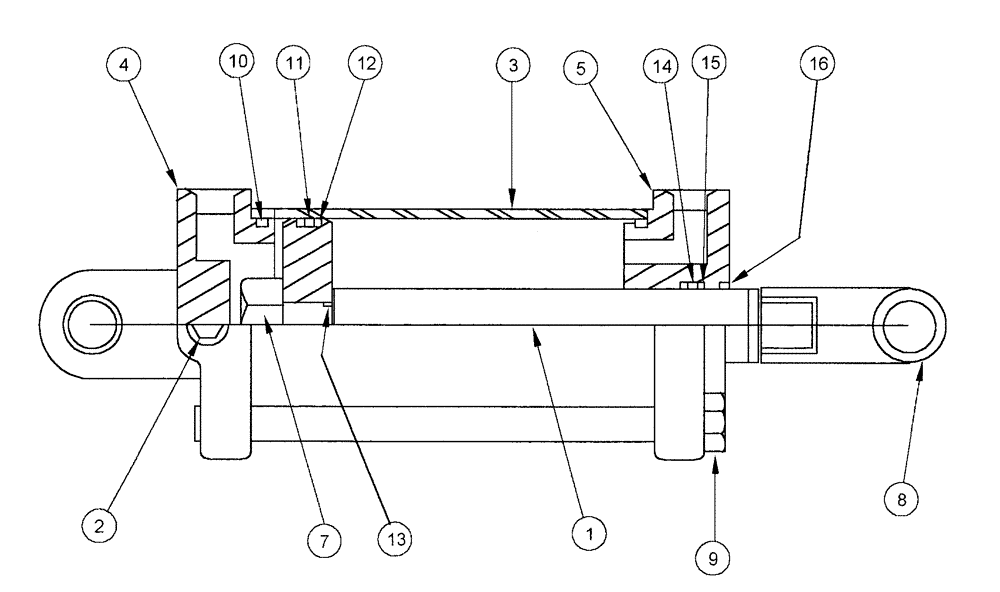

Схема запчастей Case IH NFX - (8-12) - HYDRAULIC LIFT CYLINDER 5 INCH BORE X 30 INCH STROKE (08) - HYDRAULICS
9
1
4
3
7
8
12
15
14
10
16
11
5
2
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1015203

CYLINDER ASSY.

127 mm (5) I.D. x 762 mm (30 inch) stroke, Monarch, no longer available, order 1028469, cylinder assembly, (2710, 2812, and 3010 drills), Includes Ref: 1-22

1шт.

1

1016081

ROD ASSY.

piston

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG pipe

3шт.

3

1016105

TUBE

1шт.

4

1016095

CLEVIS

1шт.

5

1016100

GLAND

1шт.

6

1016086

PISTON

1шт.

7

1016090

LOCKNUT

1шт.

8

1016136

END ASSY.

1шт.

9

1016109

HARDWARE

BOLT tie rod

4шт.

10

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Part of Seal Kit P/N 1024318

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of Seal Kit P/N 1024318

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER backup

2шт.

Part of Seal Kit P/N 1024318

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of Seal Kit P/N 1024318

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of Seal Kit P/N 1024318

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER backup

1шт.

Part of Seal Kit P/N 1024318

1шт.

16

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Part of Seal Kit P/N 1024318

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING not shown

2шт.

Part of Seal Kit P/N 1024318

1шт.

20

NSS

NOT SOLD SEPARAT

U-CUP not shown

1шт.

Part of Seal Kit P/N 1024318

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER backup not shown

2шт.

Part of Seal Kit P/N 1024318

1шт.

22

1026280

DECAL not shown

1шт.

1024318

KIT

seal, includes: REF. 10 -16 & 19 -21

1шт.
