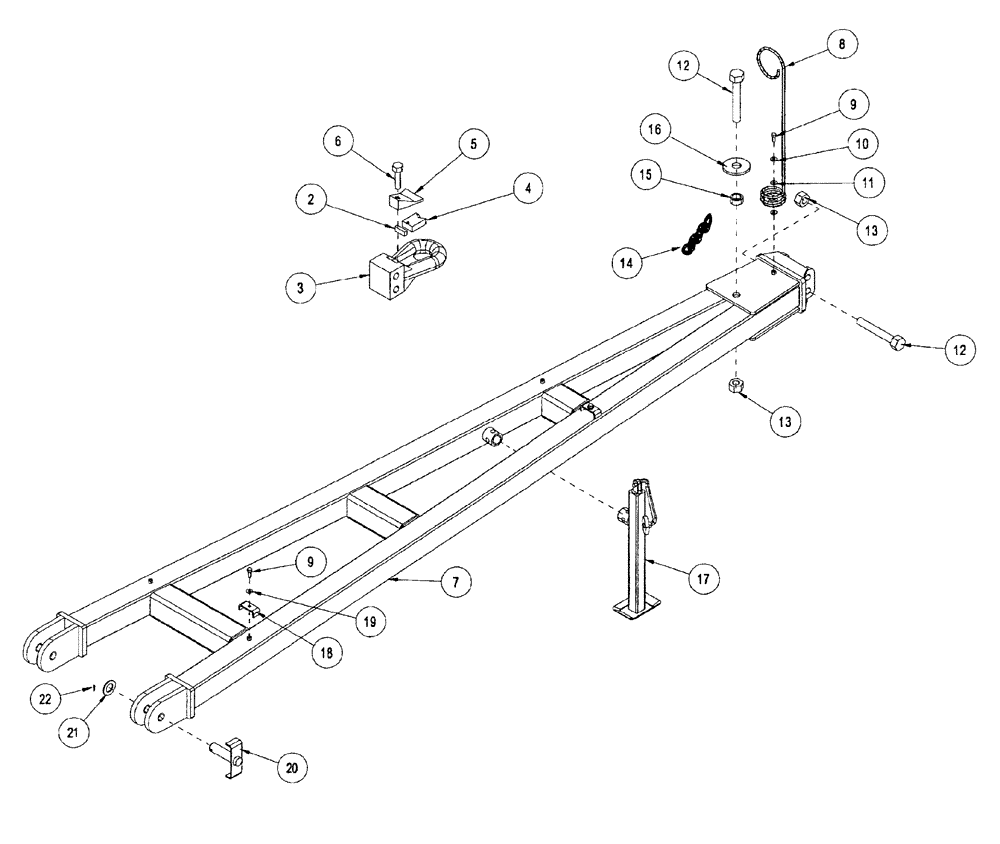

Запчасти Case IH NFX (9-02) - HITCH DRAWPOLE, REAR TOW AIRSYSTEM (09) - CHASSIS

1

1032745

HITCH

tow, Includes Ref: 2-6

1шт.

2

1032751

CUSHION

hitch

1шт.

3

1032744

HITCH

BASE

1шт.

4

1032743

BLOCK

V-hitch

1шт.

5

1032742

PLATE

top, hitch

1шт.

6

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

hex, 3/4 NC x 3 inch, grade 5

1шт.

7

1032575

HITCH

drawpole

1шт.

8

1026727

HOLDER

hose

1шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

495-21041

WASHER

WASHER flat, 13/32 x 13/16 x 1/16 inch

2шт.

12

426-16112

BOLT,Hex, 1" - 8 x 7", Gr 8

hex, 1 NC x 7 inch, grade 8

3шт.

13

232-14416

NUT,1"-8, GC

3шт.

14

822544C2

CHAIN (AG)

ASSY. includes latch assembly, 7/16 link x 64 inch long

1шт.

15

1032403

SPACER

tube, 1-5/16 x 1-3/4 x 3/4 inch

1шт.

16

1032404

WASHER

flat, 1-9/32 x 3-3/4 x 3/8 inch

1шт.

17

1016961

JACK

STAND

1шт.

18

1024284

CLAMP

hose

4шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

4шт.

20

1017062

PIN

drawpole

2шт.

21

496-11131

WASHER,1 5/16" x 2 1/2" x .150", HDN

flat, 1-5/16 x 2-1/2 x 5/32 inch

2шт.

22

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

2шт.
