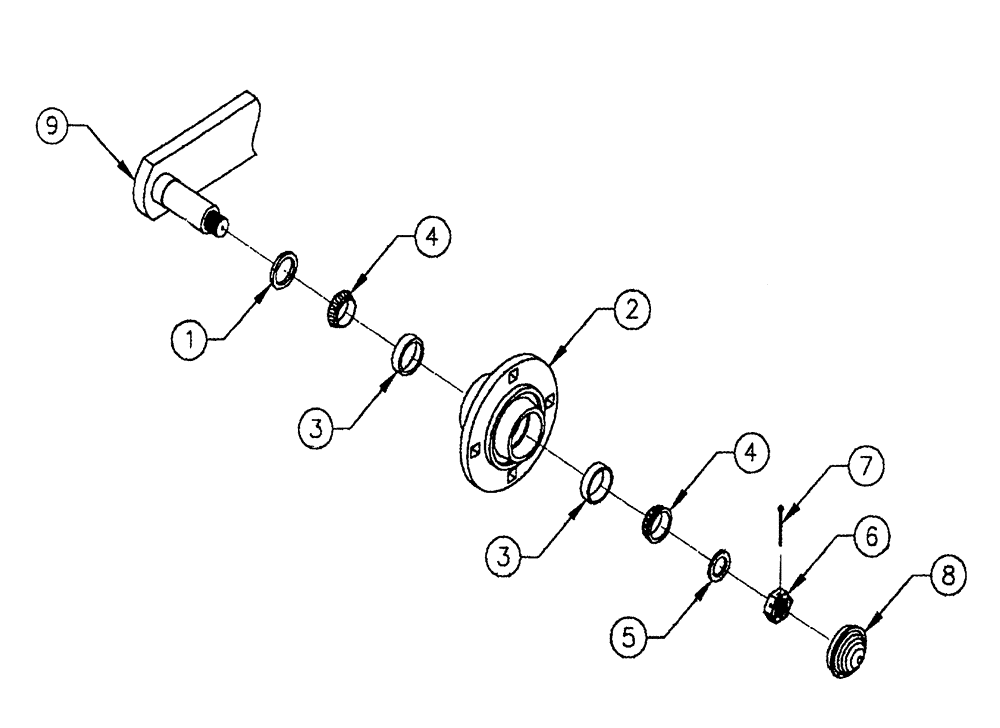

Запчасти Case IH NFX (9-44) - SWING ARM ASSEMBLY, CLYMER COULTER (09) - CHASSIS

312757A1

ARM

swing ASSY., Clymer, Includes Ref: 1-9

1шт.

312755A1

HUB

ASSY., Clymer, Includes Ref: 1-8

1шт.

1

312759A1

SEAL

oil

1шт.

2

312756A1

HUB

coulter

1шт.

3

651817R1

BEARING CUP

tapered roller, 2-21/64 inch O.D., LM 67010

2шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller, 1-1/4 inch I.D., LM 67048

2шт.

5

312760A1

THRUST WASHER

1шт.

6

25-1310

SLOTTED NUT,5/8"-18, G5

hex slotted, 5/8 inch NF

1шт.

7

432-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

8

312761A1

HUB CAP

1шт.

9

312747A1

ARM

swing, Clymer

1шт.
