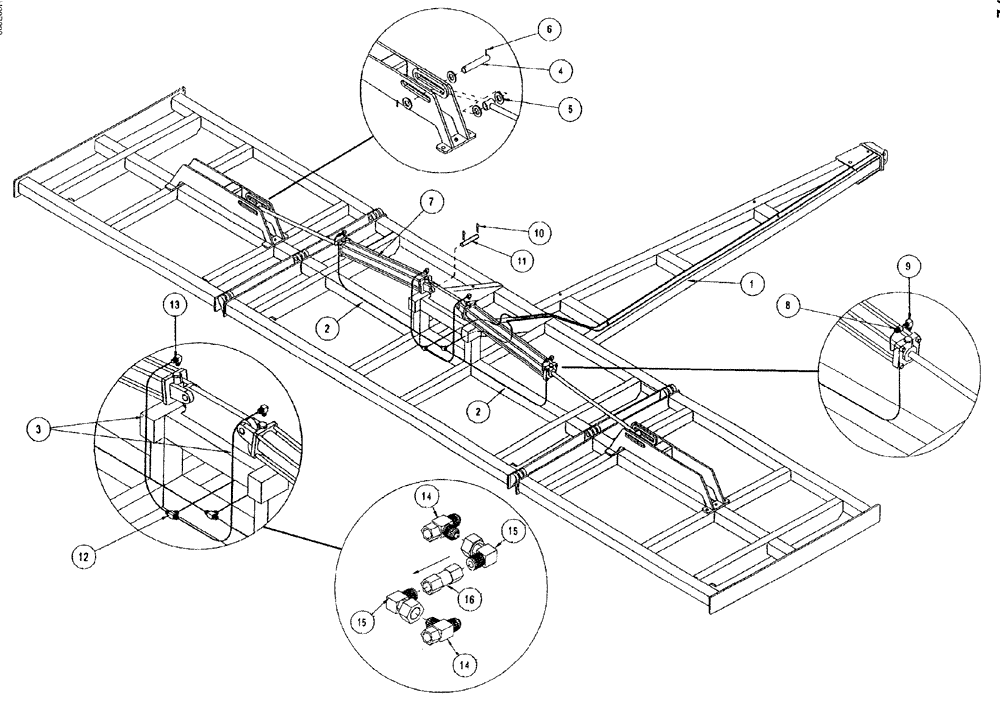

Запчасти Case IH NFX (8-02) - HYDRAULIC WING LIFT SYSTEM (08) - HYDRAULICS

1

1015804

HYDRAULIC HOSE

6096 mm (240 inch) long, 12.7 mm (1/2 inch) I.D. (used on all 3 rank drills) -8JICFSW / -8NPTM

2шт.

1

1032791

HYDRAULIC HOSE,0.50" ID x 270.00"

(Used on all 4 rank drills) - 8JICFSW / -8NPTM

2шт.

2

1015802

HYDRAULIC HOSE

1270 mm (50 inch) long, 12.7 mm (1/2 inch) I.D. (used on all 3 and 4 rank drills) -8JICFSW both

2шт.

3

1015221

HOSE

1016 mm (40 inch) long, 12.7 mm (1/2 inch) I.D. (used on all 3 and 4 rank drills) -8JICFSW both

2шт.

4

1025788

PIN

wing lift

2шт.

5

1016950

WASHER

flat, 1-5/16 x 2-1/2 x 5/32 inch

8шт.

6

1016944

PIN

cotter, 1/4 x 2 inch

4шт.

7

350720A1

HYDRAULIC CYLINDER

102 mm (4 inch) I.D. x 762 mm (30 inch) stroke (2010, 2012, 2310 and 2412 drills), Iowa Hydraulics, includes items 8 and 9, parts list Fig. 8-08, Includes Ref: 8, 9

2шт.

7

350721A1

HYDRAULIC CYLINDER

127 mm (5 inch) I.D. x 762 mm (30 inch) stroke (2710, 2812 and 3010 drills) (if used) Iowa Hydraulics, parts list Fig. 8-10, Includes: Ref: 8, 9

2шт.

8

1019844

FITTING

restrictor, 3/4-16 inch flare

2шт.

9

1014852

ELBOW,90 Degree, 3/4"-16 O-Ring x 3/4"-16, 37 Degree

elbow, 90°, 3/4-16 inch flare x o-ring boss

4шт.

1021392

PIN

ASSY., Includes Ref: 10, 11

2шт.

10

1030840

RETAINER

PIN cotter

4шт.

11

1030839

PIN

1-1/4 x 3 inch

2шт.

12

1015219

FITTING

tee, 3/4-16 inch flare branch x flare x flare

2шт.

14

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

2шт.

15

218-997

ELBOW,90 Degree, 3/4"-16 Sw x 3/8" NPT

ADAPTER swivel

2шт.

16

350929A1

VALVE, CHECK

FITTING restrictor

1шт.
