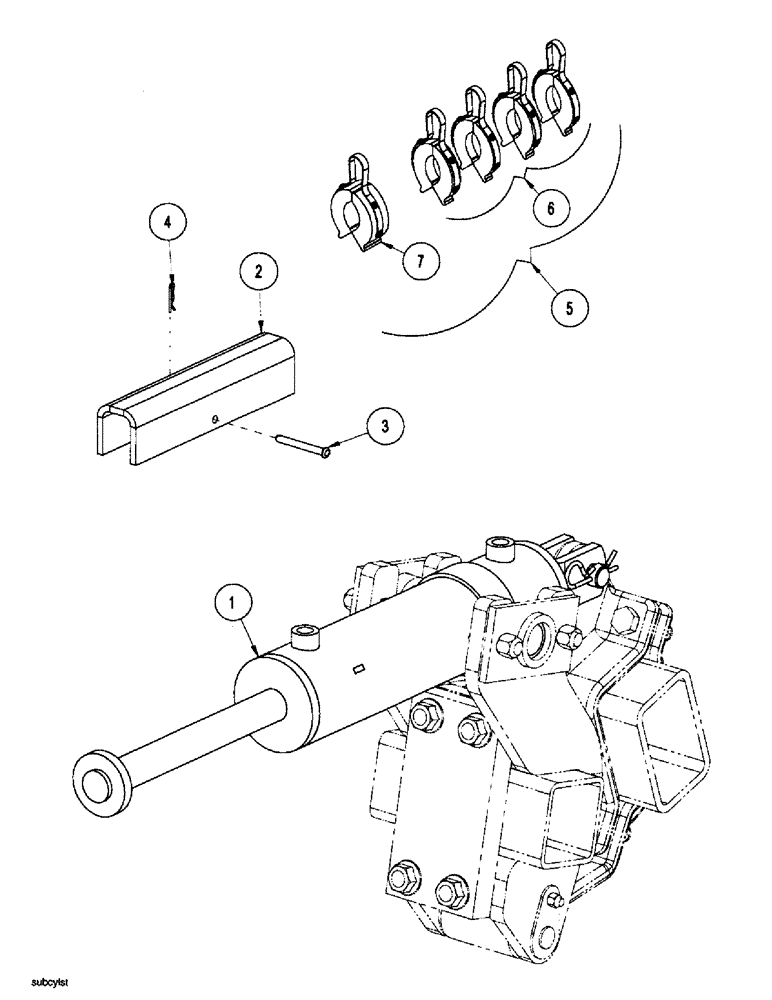

Запчасти Case IH SDX30 (2.060.1) - SUBBAR CYLINDER SAFETY LOCK (07) - HYDRAULICS

1

306296A1

HYDRAULIC CYLINDER

4" x 12" ctd 3000 psi c/w 1 pin ctd, Years: -30-NOV-04

1шт.

Includes pin 350108A1 and two clips 350109A1

1шт.

1

435893A1

HYDRAULIC CYLINDER

4" x 12" ctd 3000 psi, Years: -30-NOV-04

1шт.

No Pins Or Clips

1шт.

1

87406914

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 304.8mm Stroke

4" x 12" Monarch 3000 psi, Start Year: 01-DEC-04

1шт.

2

306298A1

STOP

cylinder

1шт.

3

439-1544

HEADED PIN,5/16" x 2 3/4"

1шт.

4

1978737C1

COTTER PIN,Int, 1/8" x 49mm

3 mm x 49 mm

1шт.

5

306299A1

KIT

depth stop 1/2" and 1 1/4"

1шт.

Includes 350702A1 and four 350704A1

1шт.

6

350704A1

STOP

depth 1/2" red

4шт.

7

350702A1

STOP

depth 1 1/4" green

1шт.
