(2.090.1) - HYDRAULIC LIFT CYLINDER, 4 INCH BORE X 30 INCH STROKE, 350720A1 AND 1016796

Запчасти Case IH SDX30 (2.090.1) - HYDRAULIC LIFT CYLINDER, 4 INCH BORE X 30 INCH STROKE, 350720A1 AND 1016796 (07) - HYDRAULICS

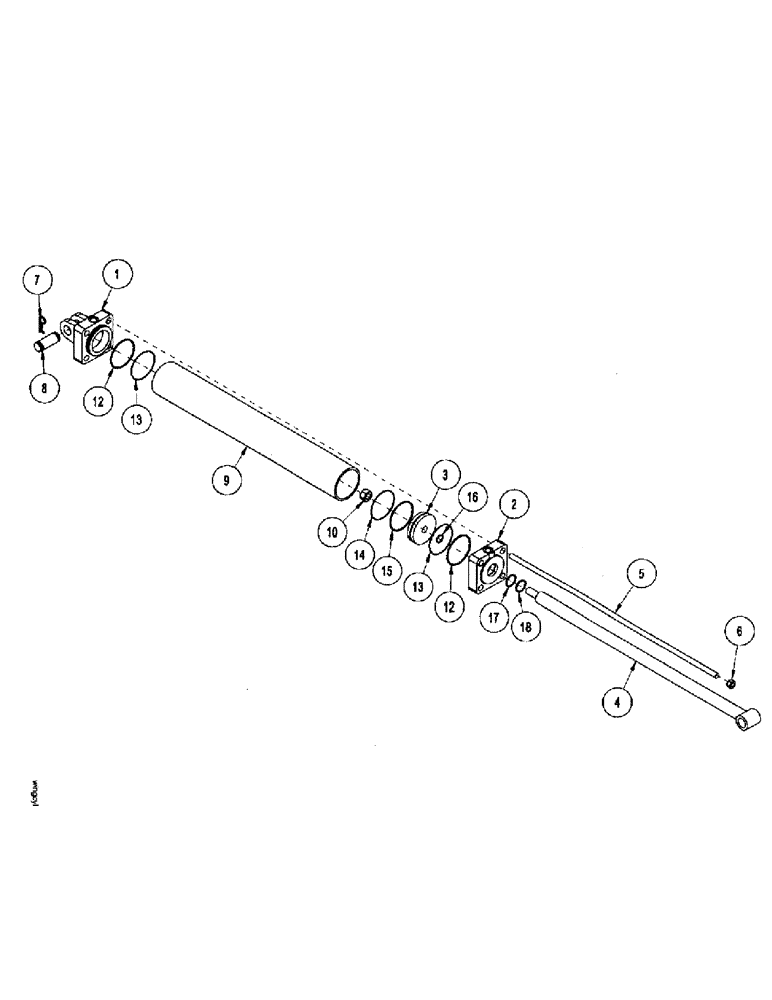

Схема запчастей Case IH SDX30 - (2.090.1) - HYDRAULIC LIFT CYLINDER, 4 INCH BORE X 30 INCH STROKE, 350720A1 AND 1016796 (07) - HYDRAULICS
7
10
16
15
18
12
8
9
14
1
2
17
5
4
6
12
3
13
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

350720A1

HYDRAULIC CYLINDER

kit 4" x 30" Iowa, Years: -31-OCT-02, Serial Range: -CBJ0008107

4шт.

Includes 1016796, 1019844, 218-5106, 350401A1, 1015478 and 6-70060

1шт.

1

1282336C1

HEAD

cylinder clevis cap 4" Iowa

1шт.

2

1282337C1

GLAND

4" Iowa

1шт.

3

149930C2

PISTON

cylinder, 4" bore, Iowa

1шт.

4

1030412

SHAFT

cylinder 4" x30" Iowa

1шт.

5

NSS

NOT SOLD SEPARAT

ROD, Tie

4шт.

6

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

7

1030840

RETAINER

HAIRPIN CYLINDER PIN KEEPER

2шт.

8

1030839

PIN

cylinder 1-1/4" OD x 3" UL

1шт.

9

NSS

NOT SOLD SEPARAT

CASE, Cylinder

1шт.

10

231-47114

LOCK NUT,7/8"-14, GB

1шт.

11

79979C3

SEAL KIT

cylinder repair

1шт.

12

NSS

NOT SOLD SEPARAT

BACKUP

2шт.

13

NSS

NOT SOLD SEPARAT

O-RING

2шт.

14

NSS

NOT SOLD SEPARAT

SEAL, Piston

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING

1шт.

17

NSS

NOT SOLD SEPARAT

U-CUP

1шт.

18

NSS

NOT SOLD SEPARAT

WIPER

1шт.
