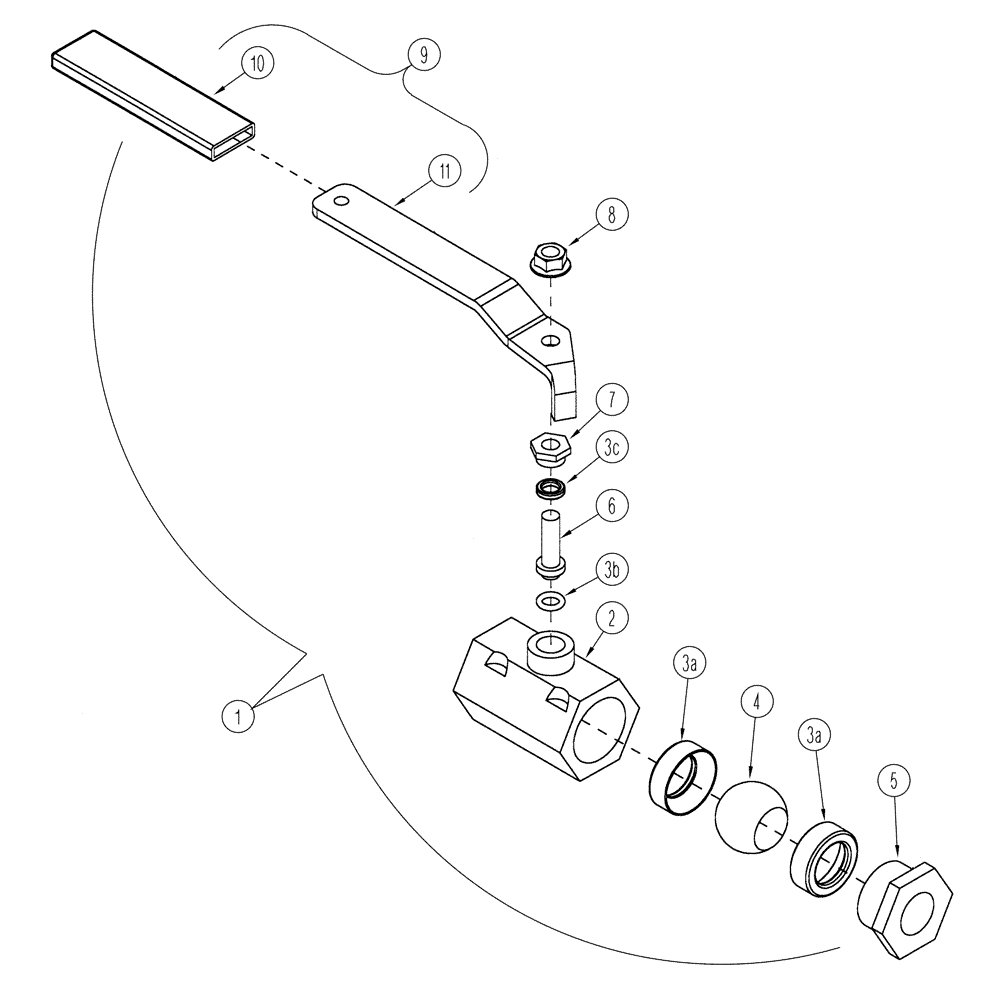

Запчасти Case IH SDX30 (2.100.1) - WING LIFT HYDRAULIC BALL VALVE ASSEMBLY (07) - HYDRAULICS

1

349403A1

VALVE

ball

1шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

350172A1

KIT

SEAL

2шт.

3a

NSS

NOT SOLD SEPARAT

SEAT, TFE

1шт.

3b

NSS

NOT SOLD SEPARAT

SEAL, TFE Thrust Washer

1шт.

3c

NSS

NOT SOLD SEPARAT

RING, TFE Stuffing Box

1шт.

4

NSS

NOT SOLD SEPARAT

BALL

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

6

NSS

NOT SOLD SEPARAT

STEM

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW, Stem Gland

1шт.

8

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

9

350203A1

HANDLE

Valve

1шт.

Includes: 60-6267T1

1шт.

10

60-6267T1

GRIP

handle vinyl 1" x 1 7/8" x 3 7/8" lg

1шт.

11

NSS

NOT SOLD SEPARAT

HANDLE, Ball Valve

1шт.
