(1.092.2) - AXLE/A HEAVY DUTY BOGIE RH AXLE/A HEAVY DUTY BOGIE RH AXLE/A HEAVY DUTY BOGIE RH AXLE/A HEAVY DUTY BOGIE RH AXLE/A HEAVY DUTY BOGIE RH

Запчасти Case IH SDX30 (1.092.2) - AXLE/A HEAVY DUTY BOGIE RH AXLE/A HEAVY DUTY BOGIE RH AXLE/A HEAVY DUTY BOGIE RH AXLE/A HEAVY DUTY BOGIE RH AXLE/A HEAVY DUTY BOGIE RH (12) - FRAME

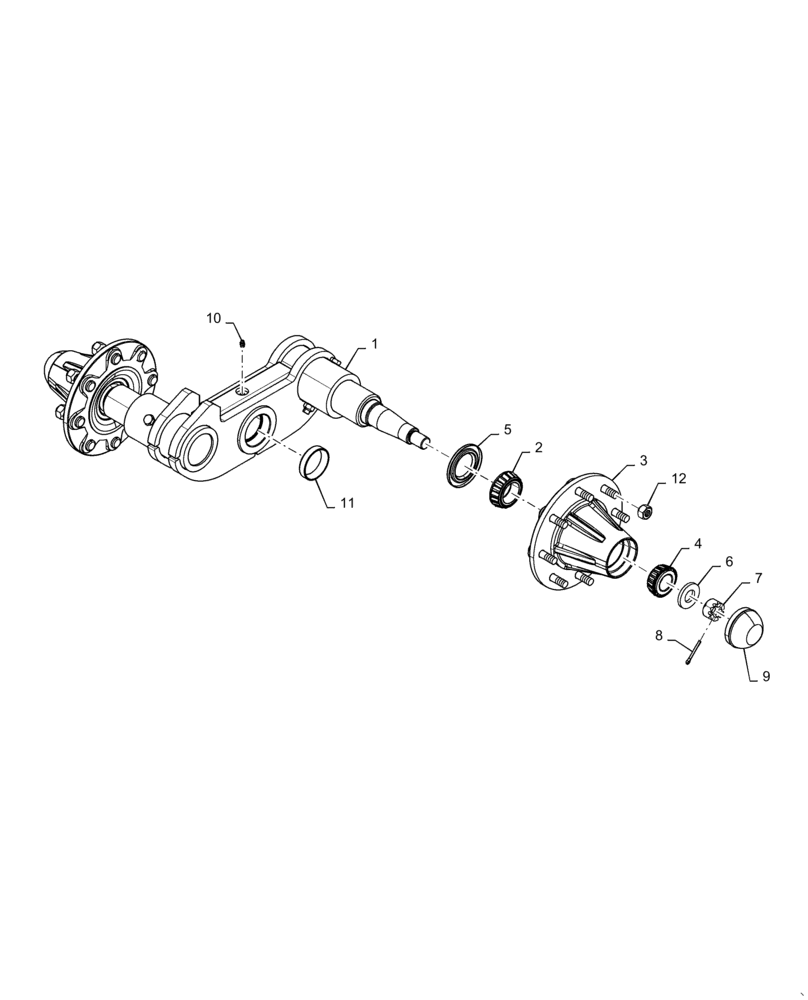

Схема запчастей Case IH SDX30 - (1.092.2) - AXLE/A HEAVY DUTY BOGIE RH AXLE/A HEAVY DUTY BOGIE RH AXLE/A HEAVY DUTY BOGIE RH AXLE/A HEAVY DUTY BOGIE RH AXLE/A HEAVY DUTY BOGIE RH (12) - FRAME
10
7
1
9
2
8
11
4
12
6
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

412797A1

AXLE

Incl 2 - 12

1шт.

2

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

2шт.

3

1020697

HUB

Assy

2шт.

4

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

2шт.

5

1020704

SEAL

2шт.

6

1013475

WASHER

2шт.

7

425-1316

NUT,1"-14, G5

2шт.

8

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

9

1023244

CAP

2шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

11

453012R1

BEARING CUP

2шт.

12

1016177

WHEEL NUT

16шт.
