(79.103.AA[08]) - VACUUM DELIVERY HOSES FOR 8 ROW 40 INCH

Запчасти Case IH 1215 (79.103.AA[08]) - VACUUM DELIVERY HOSES FOR 8 ROW 40 INCH (79) - PLANTING

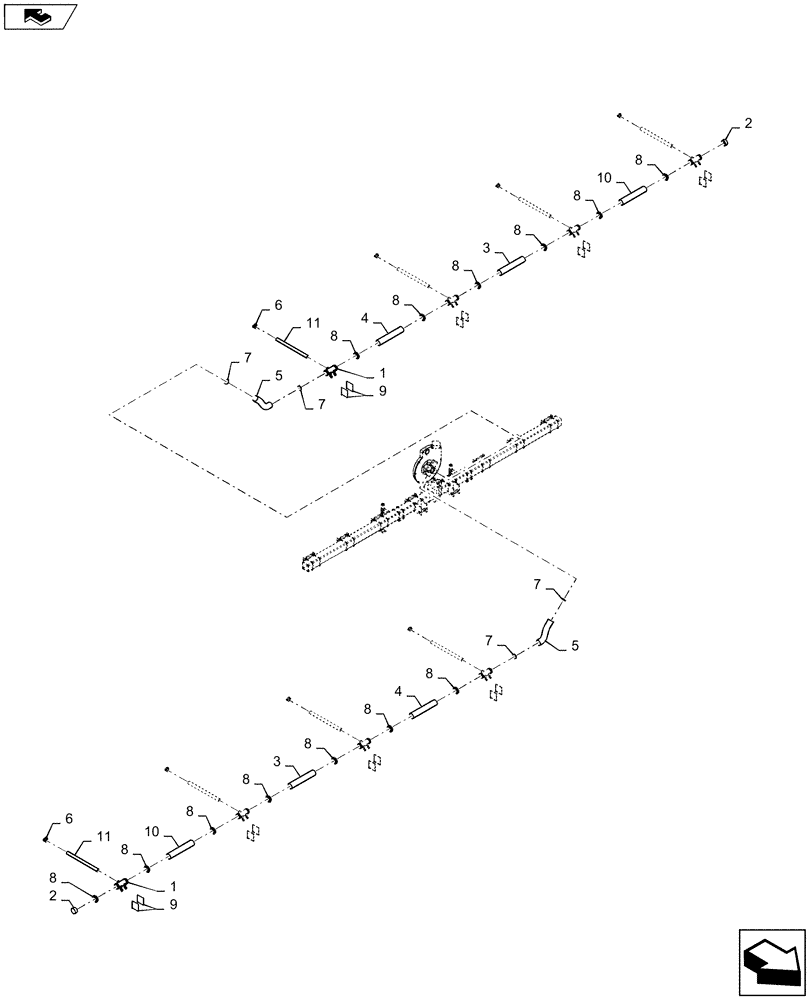

Схема запчастей Case IH 1215 - (79.103.AA[08]) - VACUUM DELIVERY HOSES FOR 8 ROW 40 INCH (79) - PLANTING
1
8
8
7
8
10
5
9
8
8
10
7
8
2
8
home
8
7
6
4
8
8
11
8
9
11
1
5
6
8
8
2
3
7
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

300766A1

TEE

Vacuum Manifold

8шт.

2

300767A1

CAP

Manifold End

2шт.

3

308301A1

TUBE,116.88 mm ID, 125 mm OD, 810 mm Length

2шт.

4

328201A1

TUBE,116.88 mm ID, 125 mm OD, 695 mm Length

2шт.

5

251079A2

HOSE

4.5" X 820mm

2шт.

6

84416530

90 ELBOW

50mm

8шт.

7

9706924

HOSE CLAMP,103.1mm - 127mm

4шт.

8

47484434

O-RING

4-1/4" X 4-5/8"

14шт.

9

112620A1

CABLE TIE

34"

16шт.

10

344907A1

TUBE,116.88 mm ID, 125 mm OD, 708 mm Length

2шт.

11

87501727

HOSE

Vacuum Flexible 927mm

8шт.
