(61.901.AF[10]) - METER DRIVE SHAFT WITH CABLE WITH CLUTCH FOR 6 ROW 36, 38, 40"

Запчасти Case IH 1215 (61.901.AF[10]) - METER DRIVE SHAFT WITH CABLE WITH CLUTCH FOR 6 ROW 36, 38, 40" (61) - METERING SYSTEM

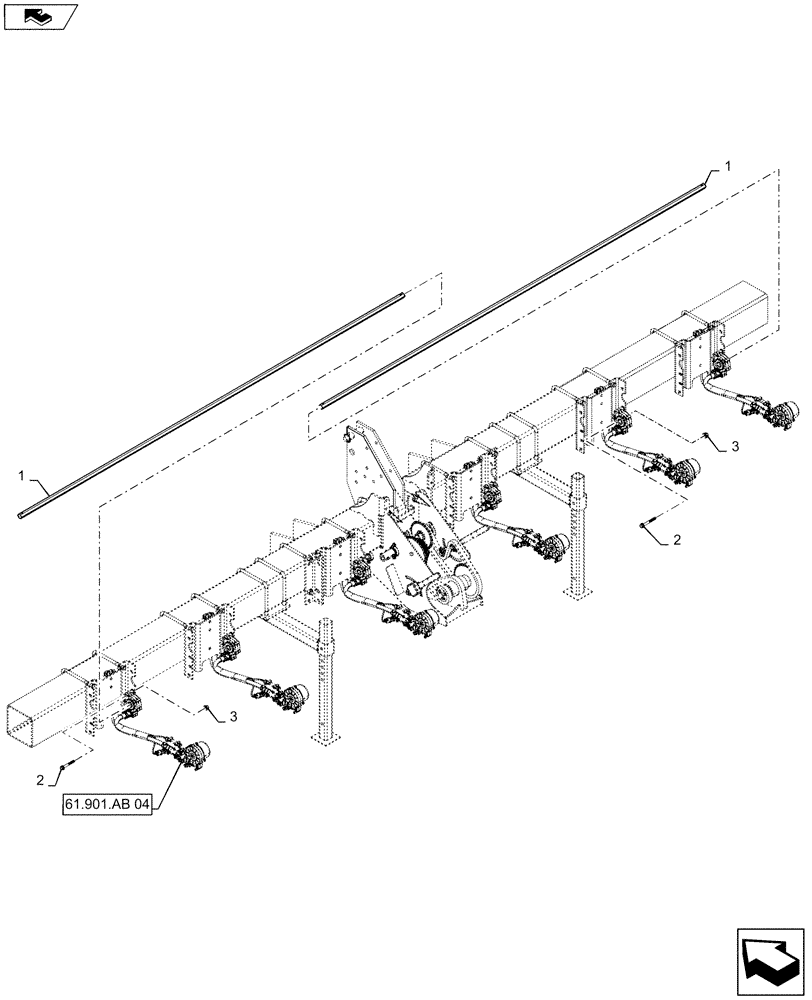

Схема запчастей Case IH 1215 - (61.901.AF[10]) - METER DRIVE SHAFT WITH CABLE WITH CLUTCH FOR 6 ROW 36, 38, 40" (61) - METERING SYSTEM
1
3
61.901.ab 04
1
home
2
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

402446A1

SHAFT

22 mm Hex X 2685 mm

2шт.

2

84553071

FLANGE BOLT

3/8 X 3"

12шт.

3

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

12шт.
