(61.901.AF[08]) - METER DRIVE SHAFT WITH CABLE WITHOUT CLUTCH FOR 8 ROW 36", 38" 40

Запчасти Case IH 1215 (61.901.AF[08]) - METER DRIVE SHAFT WITH CABLE WITHOUT CLUTCH FOR 8 ROW 36", 38" 40 (61) - METERING SYSTEM

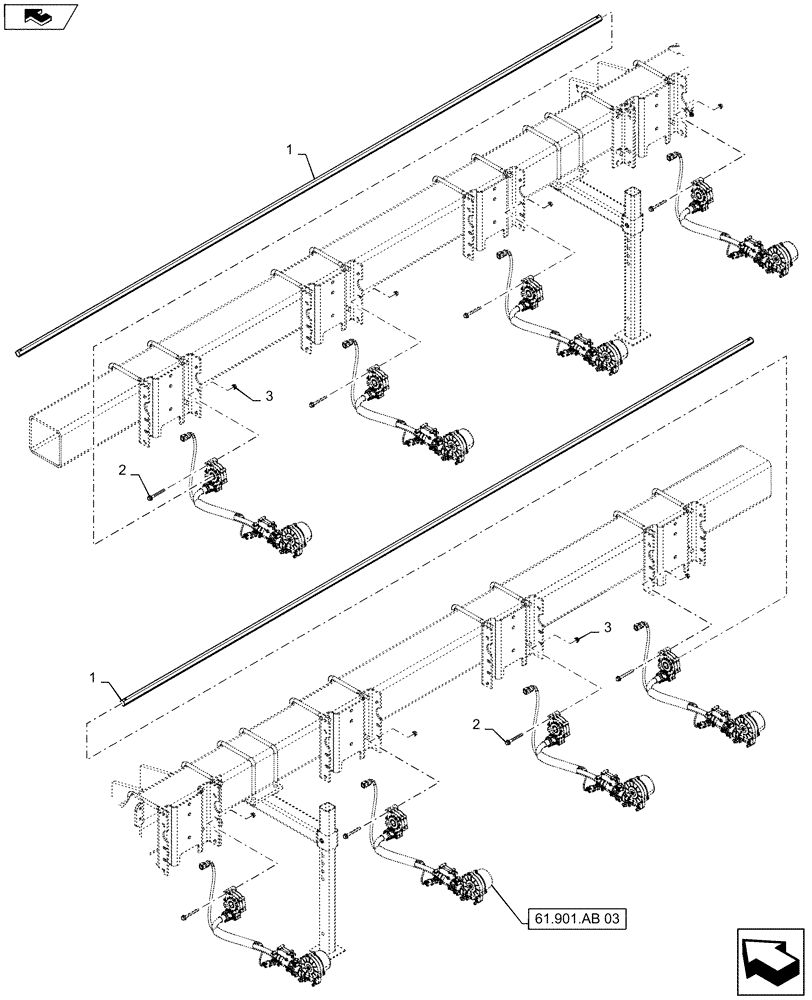

Схема запчастей Case IH 1215 - (61.901.AF[08]) - METER DRIVE SHAFT WITH CABLE WITHOUT CLUTCH FOR 8 ROW 36", 38" 40 (61) - METERING SYSTEM
1
2
61.901.ab 03
3
2
1
home
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

402951A1

DRIVE SHAFT

22 mm Hex X 3550 mm

2шт.

2

84553071

FLANGE BOLT

3/8 X 3"

16шт.

3

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

16шт.
