1
47570936
HITCH
Folding Hitch Painted Incl 32-34
1шт.
2
1250754C1
SPACER
Spacer Pivot
1шт.
3
80714
LUBE NIPPLE,1/4"-28 NPT x .54" lg
Fitting, Lube 1/4-28 TPR SAE-LT .54 LG
1шт.
4
87502244
HINGE
Hitch, Pole Folding RT Red
1шт.
5
87014472
BOLT
Bolt, 1-8x10 GR8 ZND
1шт.
6
9626600
NUT,1"-8, GC
Nut, prev torque 1" GRC ZND Direct
1шт.
7
1250775C2
PIN
Pin tongue
1шт.
8
1978738C1
HAIR PIN COTTER
Pin Q.A. Cotter
1шт.
9
1279040C1
CLEVIS
Clevis, Hitch Tounge, Red
1шт.
10
R52105
WASHER,19.45mm ID x 63.5mm OD x 6mm Thk
Washer H/T
1шт.
11
1279040C1
CLEVIS
Support Hose
2шт.
12
137098C1
SUPPORT
Bracket Pump MTG
1шт.
13
280316
BOLT,Hex, 3/4" - 10 x 7", Gr 5
Bolt, .750x7.00 GR5 ZND
1шт.
14
281036
BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5
Bolt, .750x7.50 GR5 ZND
1шт.
15
396074A1
PROTECTION STRIP
Trim Tounge
1шт.
16
1277850C1
HITCH PIN,36.88mm OD x 239mm L
Pin Hitch
1шт.
17
A30338
PIN
Pin Klik
1шт.
18
119354C1
JACK
Stand Jack
1шт.
19
404915A1
SUPPORT
Support Hose
1шт.
20
1250812C1
U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L
U-Bolt 5/8-11 UNC (7x5 Tube)
1шт.
21
280374
NUT,Hex, 5/8" - 11, Gr 5
Nut, Hex .625-11 GR5 ZND
2шт.
22
382110A1
CONTACT HOUSING
Holder 7 Pin Connector
1шт.
23
9707580
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
Bolt, .250x.750 Full GR5 ZND
2шт.
24
1279163C1
CLEVIS COUPLING
Clevis Safety Chain
1шт.
25
280119
BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5
Bolt, .625x3.50 GR5 ZND
1шт.
26
86624159
WASHER,0.78" ID x 2" OD x 0.18" Thk
Washer, .781x2.000x.179IN CST ZND
1шт.
27
86639566
NUT,5/8"-11, GB
Nut, Prev Torque 5/8 GR8 ZND Insert
1шт.
28
9627896
BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5
Bolt, .625x1.75 GR5 ZND
8шт.
29
86977731
FLANGE NUT,Hex Serr, 5/8" - 11, Gr 5
Nut, Serr FLG 5/8-11UNC GR5 ZND
8шт.
30
86511835
NUT,Flg, 3/4"-10, G5
Nut, Flange 3/4-10 GR5 ZND
2шт.
31
86624020
FLANGE NUT,Flg, 1/4"-20.G5
Nut, Flange 1/4-20UNC GR5 ZND
2шт.
32
47392435
DECAL
Decal, Warning, Tractor Speed Control
1шт.
33
47433182
DECAL
Decal, Warning, Chemical Hazard
1шт.
34
47358801
CAUTION DECAL
Decal, Caution, ISO
1шт.

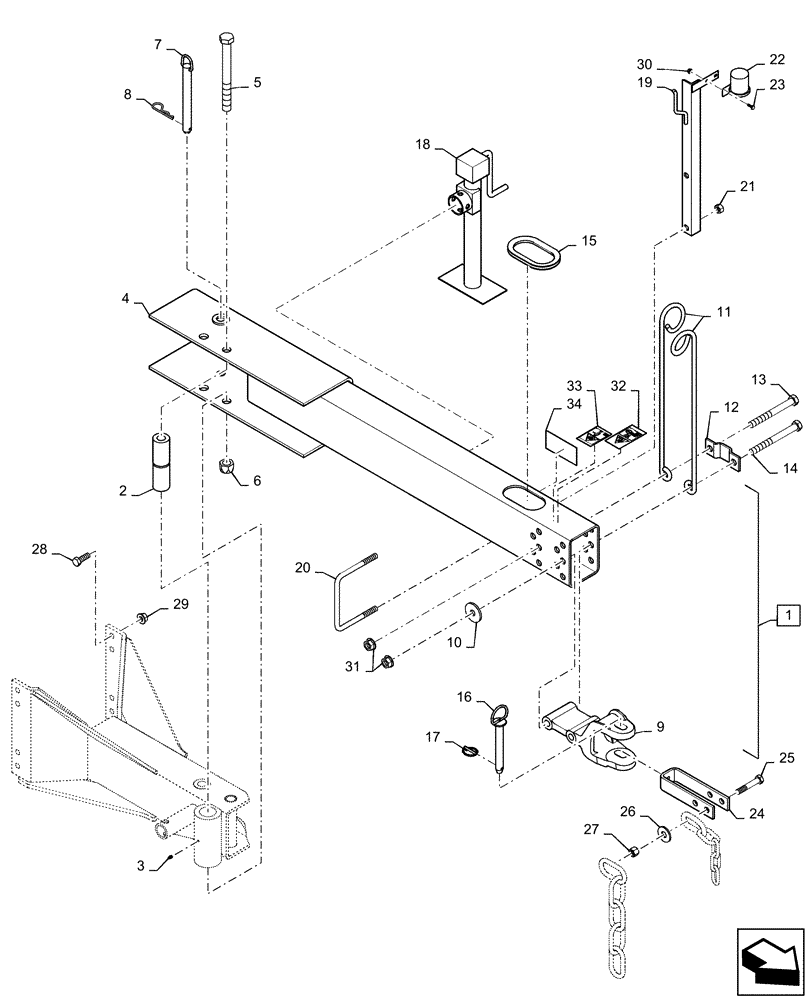

![Схема запчастей Case IH 1225 EARLY RISER - (39.110.AA[02]) - FOLDING HITCH (39) - FRAMES AND BALLASTING](https://www.partsell.ru/storage/images/caseih/5172953.png)
