(61.901.AF[07]) - METER DRIVE SHAFT WITH CABLE WITHOUT CLUTCH FOR 6 ROW

Запчасти Case IH 1225 EARLY RISER (61.901.AF[07]) - METER DRIVE SHAFT WITH CABLE WITHOUT CLUTCH FOR 6 ROW (61) - METERING SYSTEM

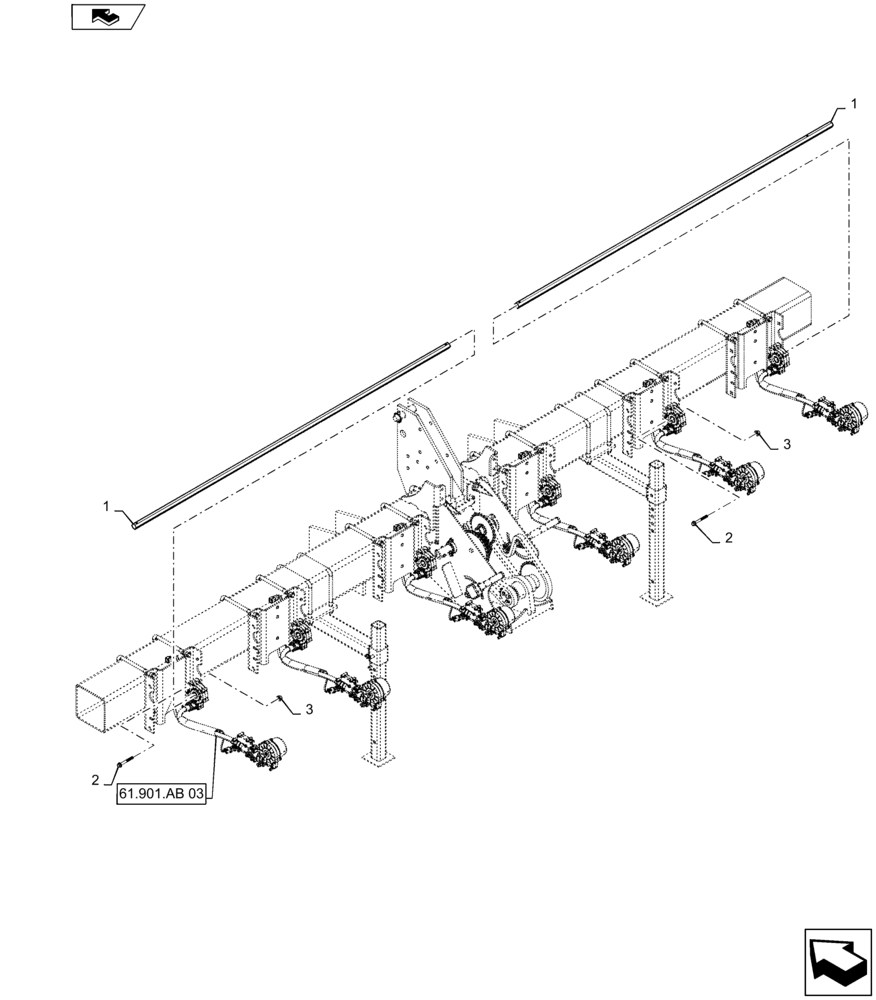

Схема запчастей Case IH 1225 EARLY RISER - (61.901.AF[07]) - METER DRIVE SHAFT WITH CABLE WITHOUT CLUTCH FOR 6 ROW (61) - METERING SYSTEM
1
home
2
61.901.ab 03
3
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

405407A1

SHAFT

22 mm Hex X 1920 mm

2шт.

2

84553071

FLANGE BOLT

3/8 X 3"

12шт.

3

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

12шт.
