(90.108.AB[03]) - CENTER DECALS

Запчасти Case IH 1225 EARLY RISER (90.108.AB[03]) - CENTER DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

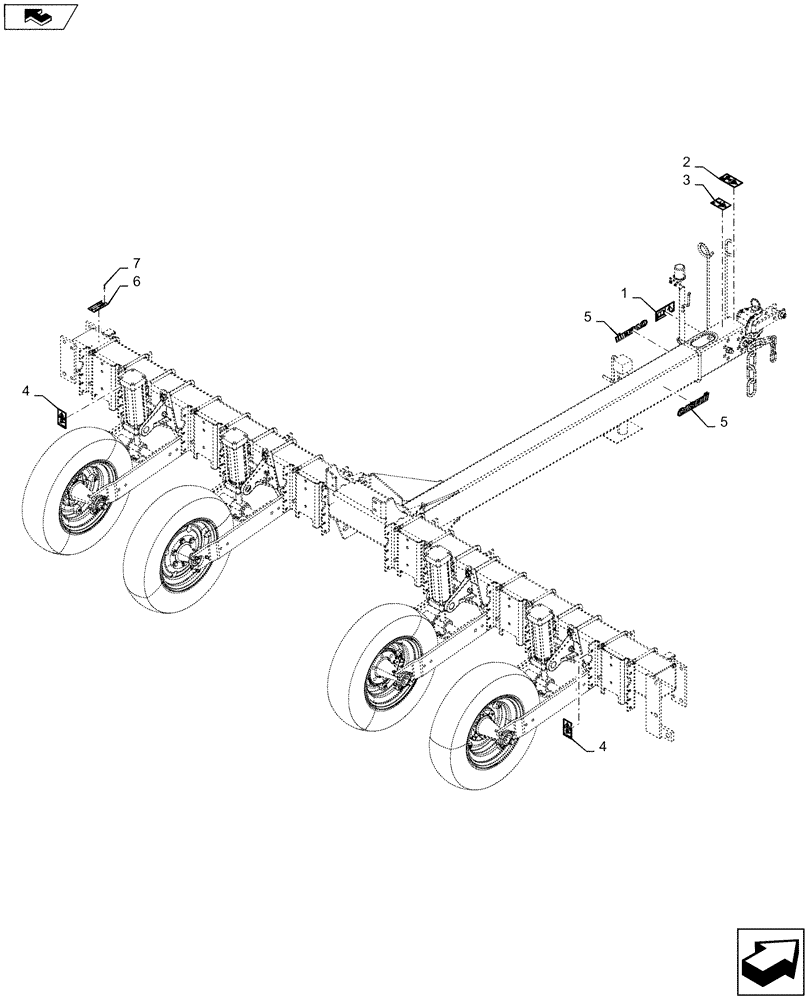

Схема запчастей Case IH 1225 EARLY RISER - (90.108.AB[03]) - CENTER DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
4
1
5
5
3
home
2
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47358801

CAUTION DECAL

ISO

1шт.

2

47392435

DECAL

Warning Tractor Speed

1шт.

3

47433182

DECAL

Warning Chemical Hazard

1шт.

4

47433201

DECAL

Warning Crush Hazard

2шт.

5

87594280

DECAL

CIH Logo 233 X 56

2шт.

6

NS

NOT SERVICED

ID Plate Must Have Autherzation to Order

1шт.

7

7327

RIVET,Pop, 1/8" x .390", Stainless

For Name Plate

2шт.
