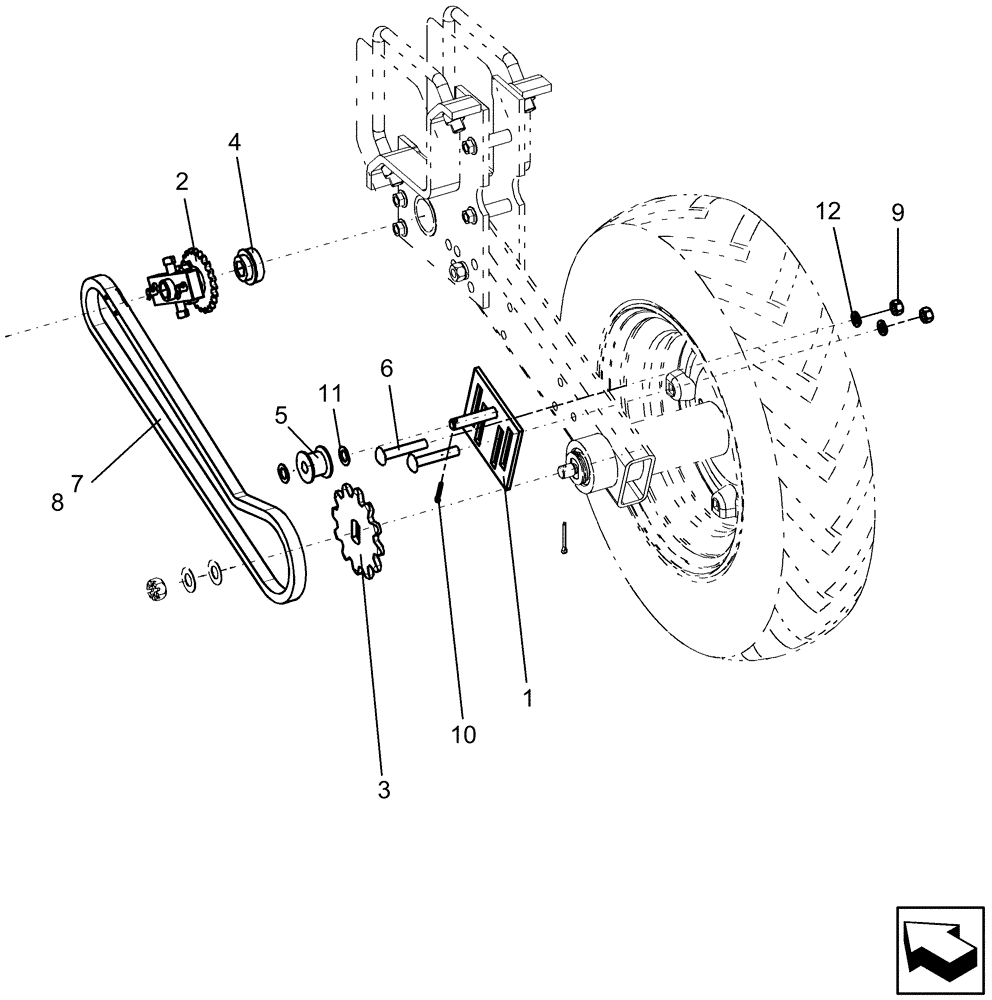

Запчасти Case IH 1230 (35.720.15) - DRIVE WHEEL CONVERSION - SINGLE ARM, MOUNTED STACKER (35) - HYDRAULIC SYSTEMS

1

193948A1

IDLER

wheel drive

1шт.

2

1277925C92

RATCHET

23 tooth LH

1шт.

3

1277736C1

SPROCKET

drive wheel, 12 tooth

1шт.

4

134181C92

BALL BEARING,2.125" OD x 0.046"

ball, 7/8" hex bore

1шт.

5

1277726C1

ROLLER,48mm OD x 34mm L

idler

1шт.

6

280818

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

2шт.

7

1277739C91

CHAIN (AG)

primary wheel drive, no. 2050, use 45 links from 569089R91 bulk chain and (1) 1277928C91 connecting link

1шт.

7

569089R91

CHAIN (AG),10' L, 1.0" Pitch

#2050 - 10' d/p roller

1шт.

7

1277928C91

LINK

connecting #2050

1шт.

8

1277928C91

LINK

connecting #2050

1шт.

9

280431

NUT,1/2"-13, G5

2шт.

10

394818

COTTER PIN,M5 x 25

1шт.

11

86624154

WASHER,0.66" ID x 1.12" OD x 0.05" Thk

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

2шт.
