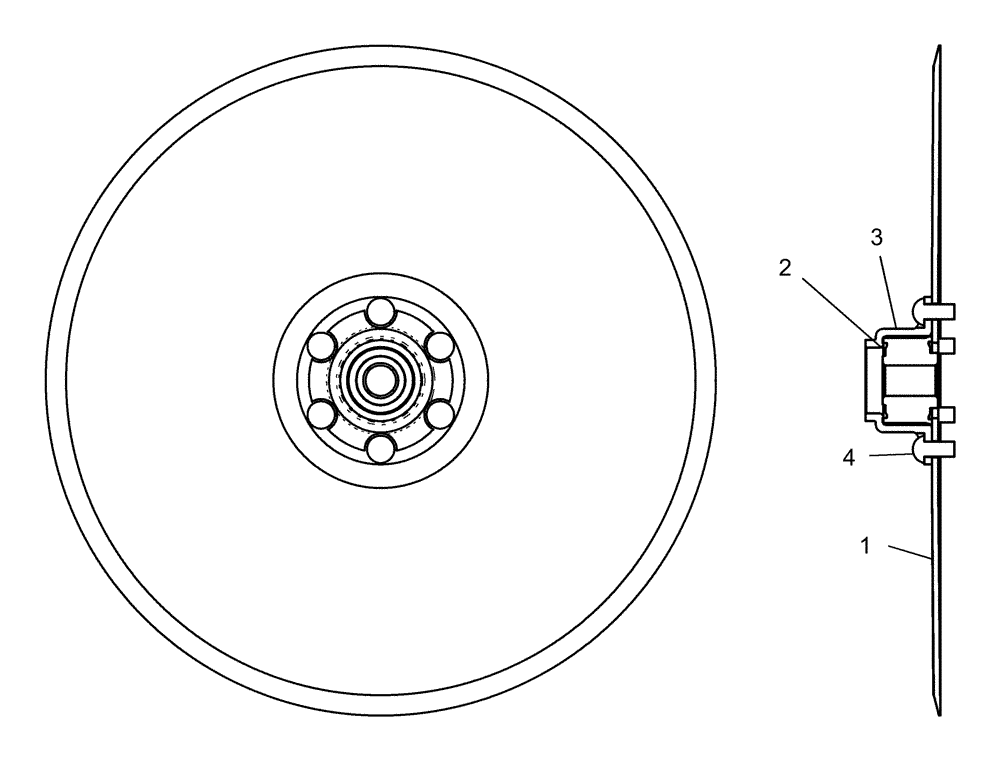

Запчасти Case IH 1240 (75.200.11[02]) - ROW UNIT - LEADING AND TRAILING DISK ASSEMBLY (75) - SOIL PREPARATION

1

84261766

DISC

OPENER ASSY, 14" HD LEADING

1шт.

1

84398745

DISC

OPENER ASSY, 14" HD LEADING, Incl 1 - 4, Start Year: 01-APR-13

1шт.

1

84416318

DISC

Opener Assy 14" Leading 4.5mm Incl 1 - 4

1шт.

1

84261767

DISC

OPENER ASSY, 14" HD TRAILING

1шт.

1

84398746

DISC

OPENER ASSY, 14" HD TRAILING, Incl 1 - 4, Start Year: 01-APR-13

1шт.

1

84416319

DISC

Opener Assy 14" Trailing 4.5mm Incl 1 - 4

1шт.

1

84259109

PLATE

355.6 mm x 3.5 mm 6-hole opener/square

1шт.

1

84399105

DISK

355.6 mm x 3.5 mm 6-hole opener/square, Start Year: 01-APR-13

1шт.

2

87715049

BALL BEARING,16.13mm ID x 47mm OD x 29.18mm W

Heavy opener ball

1шт.

2

84397014

BALL BEARING

Heavy opener ball, Start Year: 01-APR-13

1шт.

3

84261758

FLANGE

Bearing Retainer

1шт.

3

84397030

FLANGE

Bearing Retainer, Start Year: 01-APR-13

1шт.

4

80822

RIVET,But Hd, 5/16" x 5/8"

5/16" x 5/8" BTNHD SOLID

6шт.

5

86508732

BOLT,5/8"-11 x 2.391" Cl 8

For Mounting Leading Disc, Not Illustrated

1шт.

5

87698796

BOLT,Hex, 5/8-11 1.75 Full LH Thd Gr 8

For Mounting Leading Disc, Not Illustrated

1шт.
