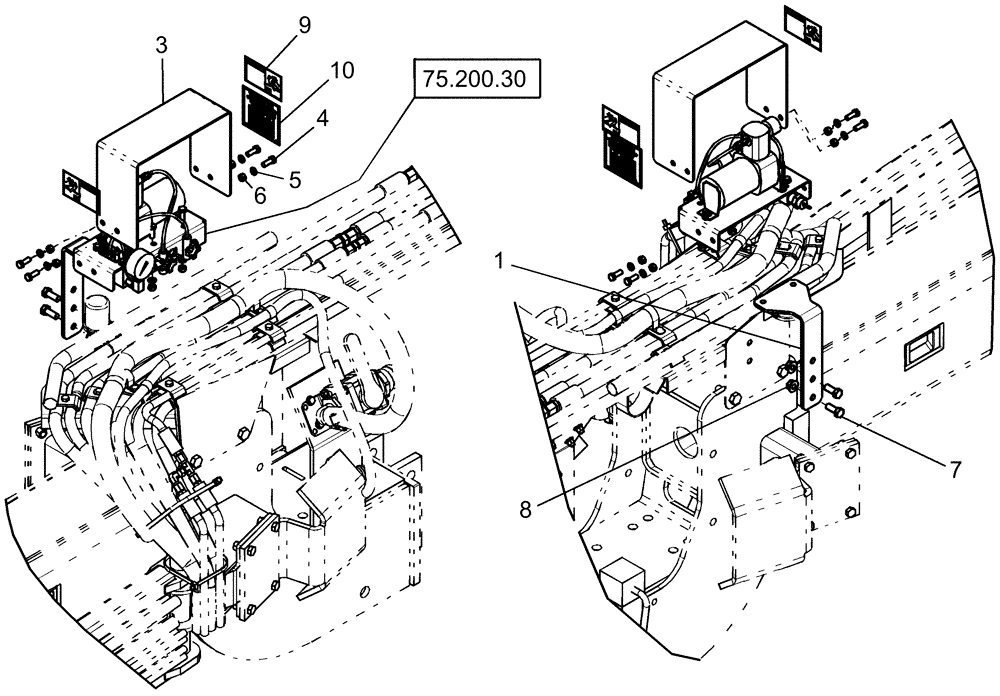

Запчасти Case IH 1240 (75.200.26) - PNEUMATIC DOWN PRESSURE - AIR PUMP ASSEMBLY, 12/23 AND 16/31 ROW PLANTERS (75) - SOIL PREPARATION

1

87758239

BRACKET

mount, compressor base

1шт.

3

87734598

BRACKET

pneumatic pump protection with decals

1шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

5

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

6

9628503

NUT,3/8"-16, G5

6шт.

7

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

8

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

9

87697284

DECAL

safety

2шт.

10

87720301

DECAL

pneumatic down pressure setting

1шт.
