(75.200.40) - PNEUMATIC DOWN PRESSURE - COMPRESSOR DETAILS, 12/23 AND 16/31 ROW PLANTERS

Запчасти Case IH 1240 (75.200.40) - PNEUMATIC DOWN PRESSURE - COMPRESSOR DETAILS, 12/23 AND 16/31 ROW PLANTERS (75) - SOIL PREPARATION

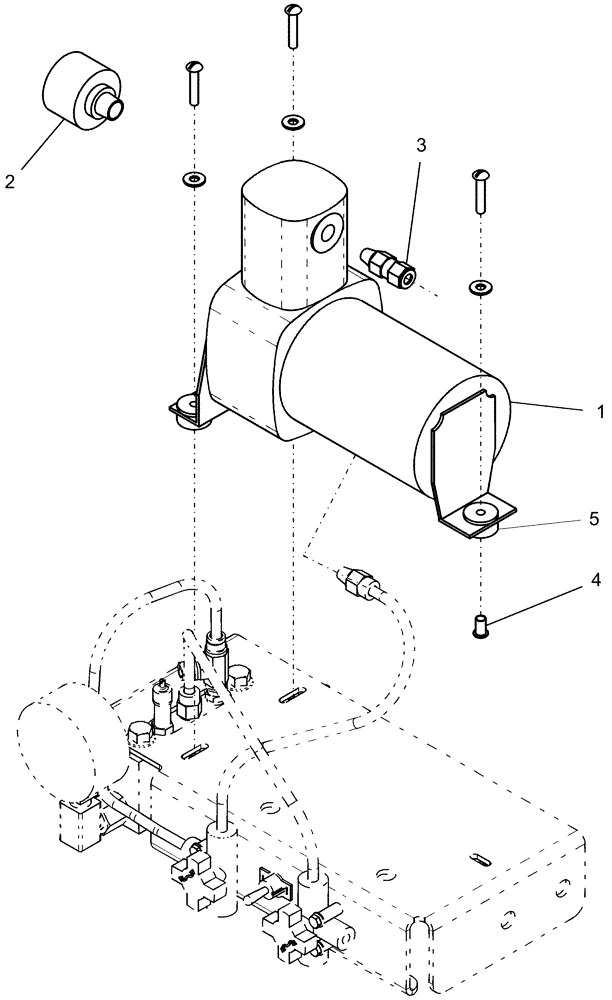

Схема запчастей Case IH 1240 - (75.200.40) - PNEUMATIC DOWN PRESSURE - COMPRESSOR DETAILS, 12/23 AND 16/31 ROW PLANTERS (75) - SOIL PREPARATION
5
1
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87623677

AIR COMPRESSOR

pneumatic down pressure

1шт.

1

84282522R

REMAN-HYD PUMP,12V

1240 PIVOT TRANSPORT PLANTER EARLY RISER® SERIES, Pneumatic down pressure (7/08-), Reman for New PN 87623677

1шт.

1

84282522C

CORE-HYDRAULIC PUMP,12V

Return Number

1шт.

2

87623801

AIR FILTER

1/4" npt

1шт.

3

87734595

CHECK VALVE

in line

1шт.

4

87734596

EYELET

insert

3шт.

5

87734597

GROMMET

3шт.
