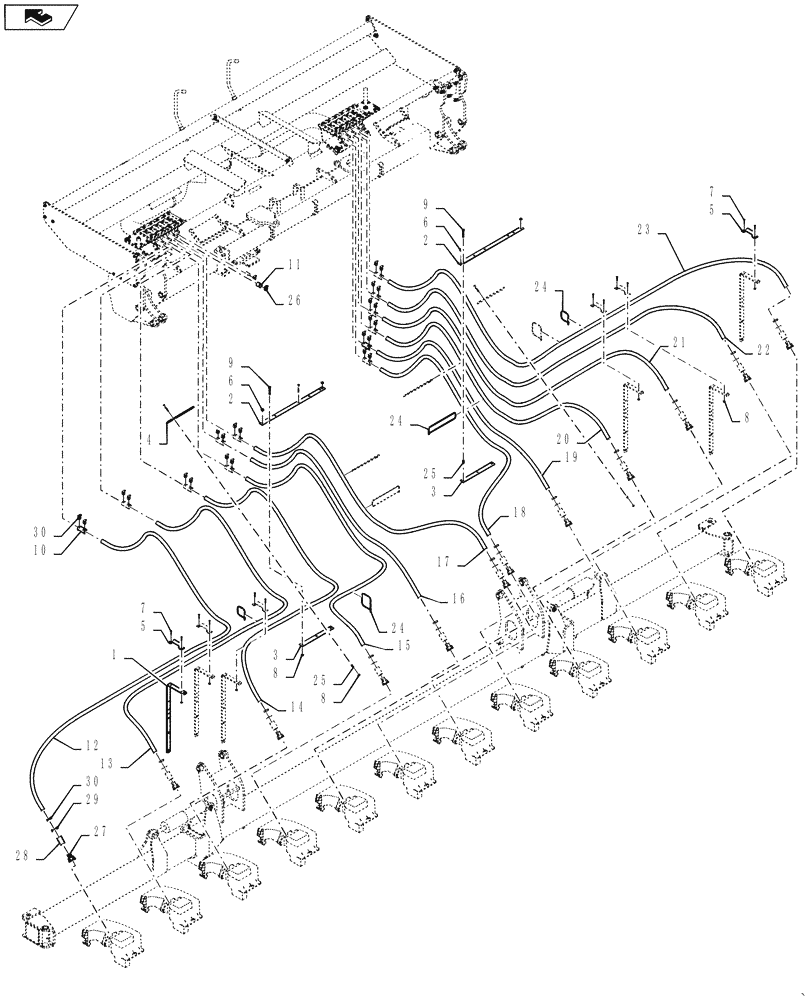

Запчасти Case IH 1240 (80.150.17) - BULK FILL - SEED HOSES, 12 ROW (80) - CROP STORAGE/UNLOADING

1

427745A2

BAR

Vacuum Support

6шт.

2

444186A1

SUPPORT TUBE

Bar

2шт.

3

444176A1

SUPPORT TUBE

Bar

2шт.

4

440367A1

BAR

Bulk Seed Hoses

2шт.

5

87446019

BRACKET

Hose Support

6шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

7

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

12шт.

8

20356

NUT,1/4"-20, GB

20шт.

9

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

8шт.

10

87482203

ADAPTER

Seed Hose, 1.25" OD

12шт.

11

2688

CAP

1.188 ID

4шт.

12

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 5550 mm, Cut From Bulk 87483976

1шт.

13

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 5250 mm, Cut From Bulk 87483976

1шт.

14

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 4040 mm, Cut From Bulk 87483976

1шт.

15

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 3415 mm, Cut From Bulk 87483976

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 3050 mm, Cut From Bulk 87483976

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 3200 mm, Cut From Bulk 87483976

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 3300 mm, Cut From Bulk 87483976

1шт.

19

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 3000 mm, Cut From Bulk 87483976

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 3350 mm, Cut From Bulk 87483976

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 4040 mm, Cut From Bulk 87483976

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 5250 mm, Cut From Bulk 87483976

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 5450 mm, Cut From Bulk 87483976

1шт.

24

291207C1

CLAMP

Zip Ties

8шт.

25

84286644

BUSHING

Spacer

8шт.

26

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

4шт.

27

84329267

COUPLING

1.25" Seed Hose

12шт.

28

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1.25" x 101.6 mm, Cut From Bulk 87483977

12шт.

29

84372879

O-RING

Seed Hose Coupling

12шт.

30

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

36шт.
