(80.150.18) - BULK FILL - SEED HOSES, 16/31 ROW

Запчасти Case IH 1240 (80.150.18) - BULK FILL - SEED HOSES, 16/31 ROW (80) - CROP STORAGE/UNLOADING

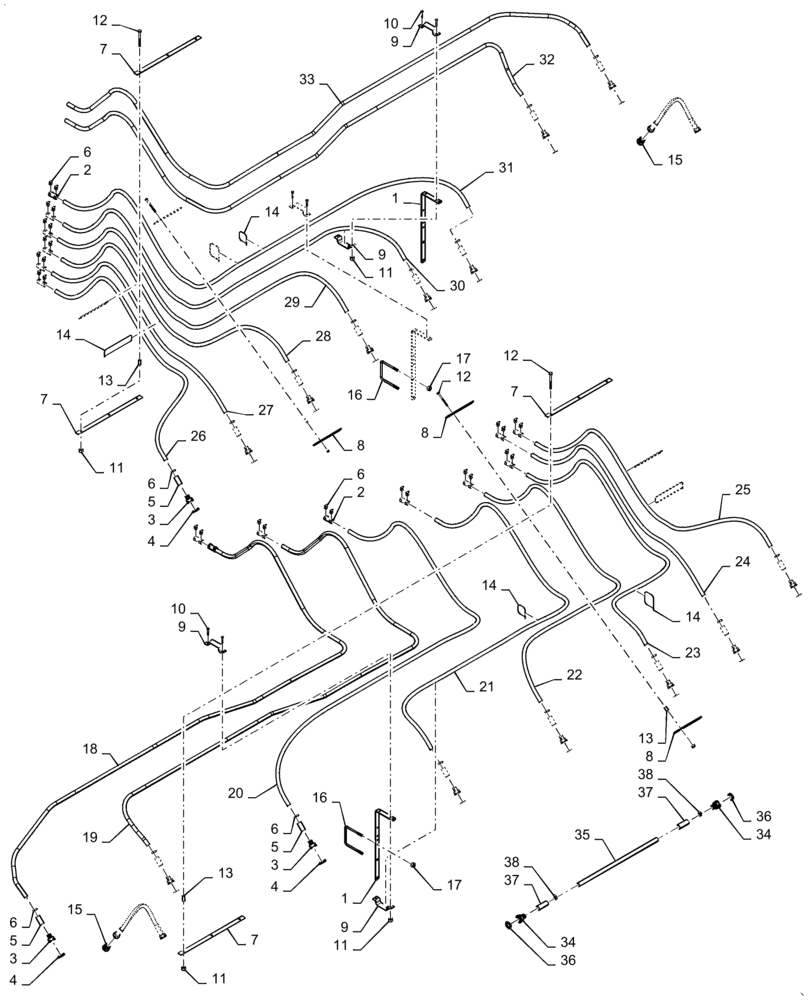

Схема запчастей Case IH 1240 - (80.150.18) - BULK FILL - SEED HOSES, 16/31 ROW (80) - CROP STORAGE/UNLOADING
3
9
6
11
12
11
21
11
5
14
36
17
16
9
15
11
7
34
4
6
1
25
7
2
34
2
23
38
7
7
15
17
35
19
22
20
3
10
9
36
13
18
38
24
6
16
28
29
14
12
8
13
8
5
8
9
1
13
14
31
5
27
12
6
37
37
4
14
33
10
32
30
26
3
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

427745A2

BAR

Vacuum Support

6шт.

2

87482203

ADAPTER

Seed Hose 1.25" OD

16шт.

3

84329267

COUPLING

1.25" Seed Hose

46шт.

4

84372879

O-RING

Seed Hose Coupling

46шт.

5

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1.25" x 101.6 mm, Cut From Bulk 87483977

46шт.

6

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

78шт.

7

444174A1

SUPPORT TUBE

Bar

4шт.

8

440367A1

BAR

Bulk Seed Hoses

2шт.

9

87446019

BRACKET

Hose Support

10шт.

10

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

12шт.

11

86625061

NUT,1/4"-20, GB

22шт.

12

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

10шт.

13

84286644

BUSHING

Spacer

10шт.

14

291207C1

CLAMP

Zip Ties

10шт.

15

84375592

CAP

Quick Coupler

15шт.

16

1250813C1

U-BOLT

5/8 - 11

2шт.

17

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

18

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 7239 mm, Cut From Bulk 87483976

1шт.

19

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 6750 mm, Cut From Bulk 87483976

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 5918 mm, Cut From Bulk 87483976

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 5105 mm, Cut From Bulk 87483976

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 4369 mm, Cut From Bulk 87483976

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 3480 mm, Cut From Bulk 87483976

1шт.

24

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 2900 mm, Cut From Bulk 87483976

1шт.

25

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 3300 mm, Cut From Bulk 87483976

1шт.

26

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 3480 mm, Cut From Bulk 87483976

1шт.

27

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 3000 mm, Cut From Bulk 87483976

1шт.

28

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 3632 mm, Cut From Bulk 87483976

1шт.

29

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 4450 mm, Cut From Bulk 87483976

1шт.

30

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 5250 mm, Cut From Bulk 87483976

1шт.

31

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 5850 mm, Cut From Bulk 87483976

1шт.

32

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 6700 mm, Cut From Bulk 87483976

1шт.

33

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 6900 mm, Cut From Bulk 87483976

1шт.

34

84329267

COUPLING

1.25" Seed Hose

2шт.

35

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1" x 890 mm, Cut From Bulk 87483976

1шт.

36

84372879

O-RING

Seed Hose Coupling

2шт.

37

NSS

NOT SOLD SEPARAT

HOSE, PVC Black, 1.25" x 101.6 mm, Cut From Bulk 87483977

2шт.

38

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

2шт.
