(35.850.02) - HYDRAULICS - TRACTOR HOSE AND COUPLER - 12 ROW AND 16 ROW - BULK FILL, 2 POINT

Запчасти Case IH 1250 (35.850.02) - HYDRAULICS - TRACTOR HOSE AND COUPLER - 12 ROW AND 16 ROW - BULK FILL, 2 POINT (35) - HYDRAULIC SYSTEMS

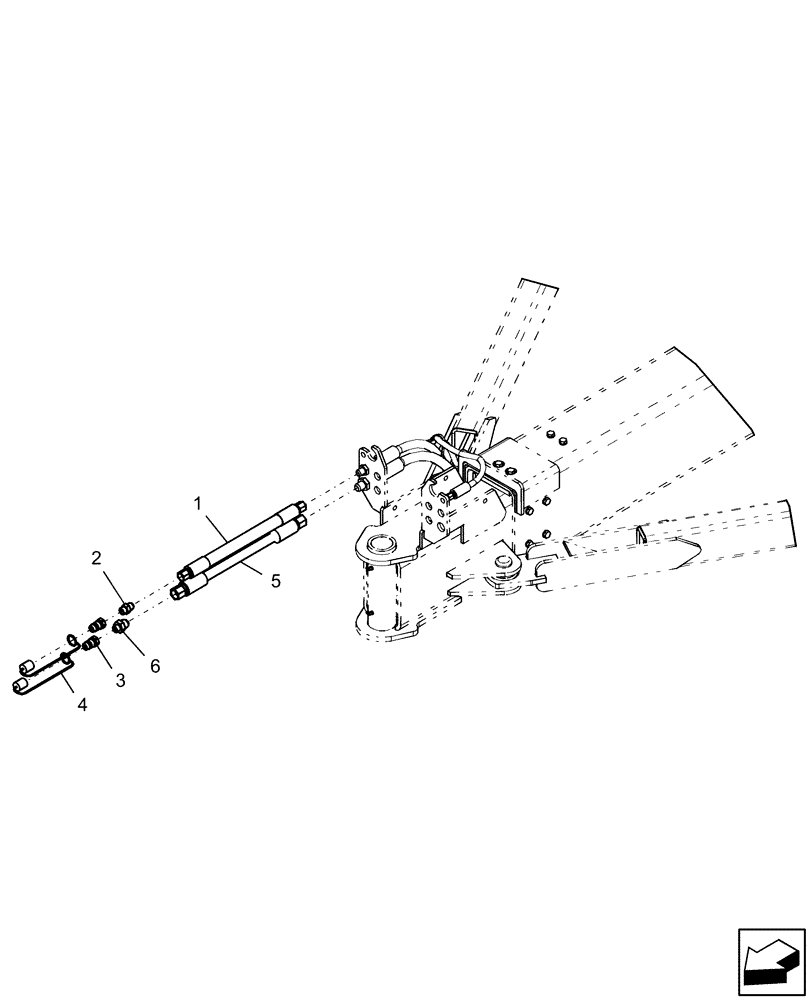

Схема запчастей Case IH 1250 - (35.850.02) - HYDRAULICS - TRACTOR HOSE AND COUPLER - 12 ROW AND 16 ROW - BULK FILL, 2 POINT (35) - HYDRAULIC SYSTEMS
6
1
4
3
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87454315

HYDRAULIC HOSE,16mm ID x 2230mm L, SAE 100R17

5/8" x 88" fl

1шт.

2

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

5/8" mb x 5/8" mj

1шт.

3

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

2шт.

4

333719A1

CAP

hydraulic quick coupler female, yellow

2шт.

5

301277A1

HYDRAULIC HOSE,19.05mm ID x 2540mm L

3/4" x 90" fl

1шт.

6

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

1шт.
