(39.100.05) - MARKER - VALVE AND CYLINDER MOUNT - 24 ROW

Запчасти Case IH 1250 (39.100.05) - MARKER - VALVE AND CYLINDER MOUNT - 24 ROW (39) - FRAMES AND BALLASTING

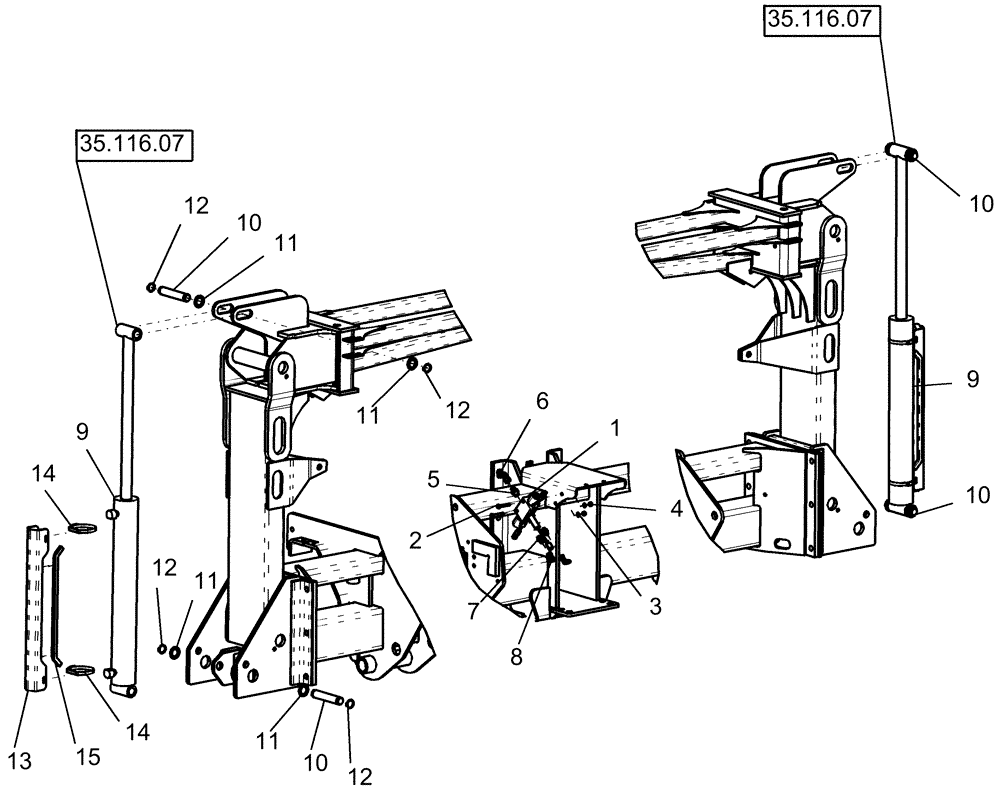

Схема запчастей Case IH 1250 - (39.100.05) - MARKER - VALVE AND CYLINDER MOUNT - 24 ROW (39) - FRAMES AND BALLASTING
1
12
9
10
12
5
10
2
11
35.116.07
35.116.07
10
11
9
14
14
4
3
7
12
8
10
11
15
6
11
13
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87463248

VALVE

assembly, marker

1шт.

2

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

3

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

4

9628503

NUT,3/8"-16, G5

2шт.

5

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

6

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

7

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

8

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

9

87505950

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 669.93mm Stroke

3 1/2" x 26 3/8", marker

2шт.

10

87505919

PIN

cylinder 31.75 mm x 152.4 mm

4шт.

11

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

8шт.

12

86625148

SNAP RING,#125, Ext

8шт.

13

87549643

BRACKET

marker cylinder shield

2шт.

14

87019670

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

4шт.

15

1330108CX

SEAL,304.8mm L

Trim Edge Black, 250' Roll

2шт.
