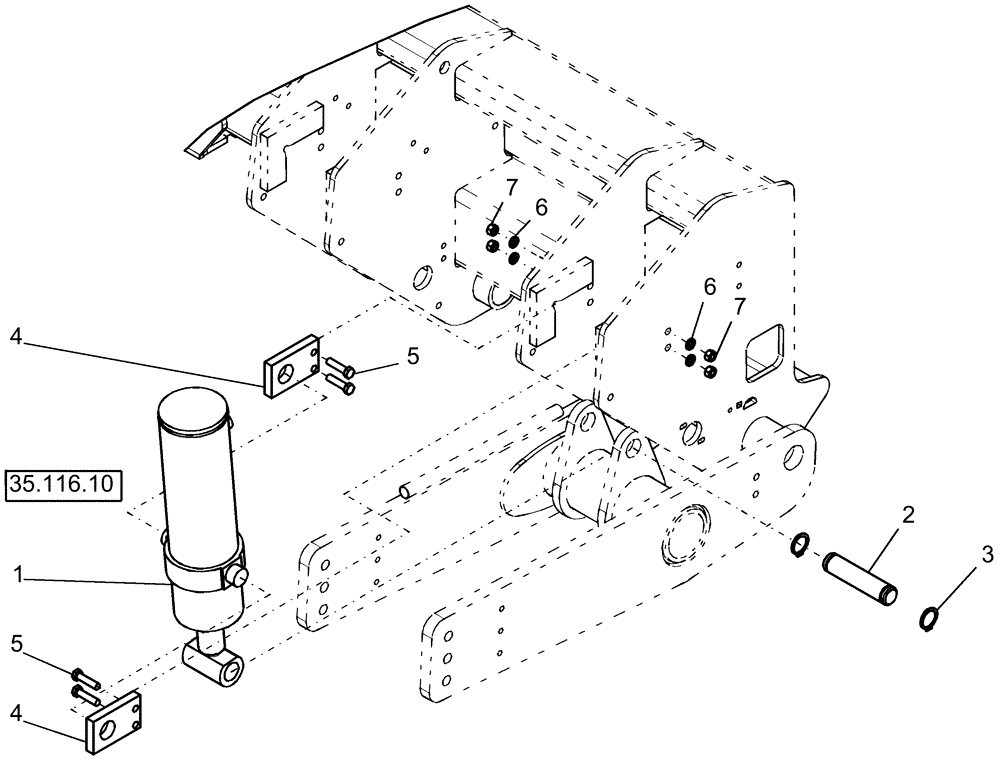

Запчасти Case IH 1250 (39.105.03) - FRAME - CYLINDER, CENTER LIFT - 24 ROW (39) - FRAMES AND BALLASTING

1

87462742

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 314.45mm Stroke

4 1/2" x 12 3/8" master

1шт.

2

87505760

PIN

38 mm x 143.5 mm

1шт.

3

86632531

SNAP RING,#150, Ext

2шт.

4

87545576

PLATE

trunion cylinder mount

2шт.

5

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

7

280431

NUT,1/2"-13, G5

4шт.
