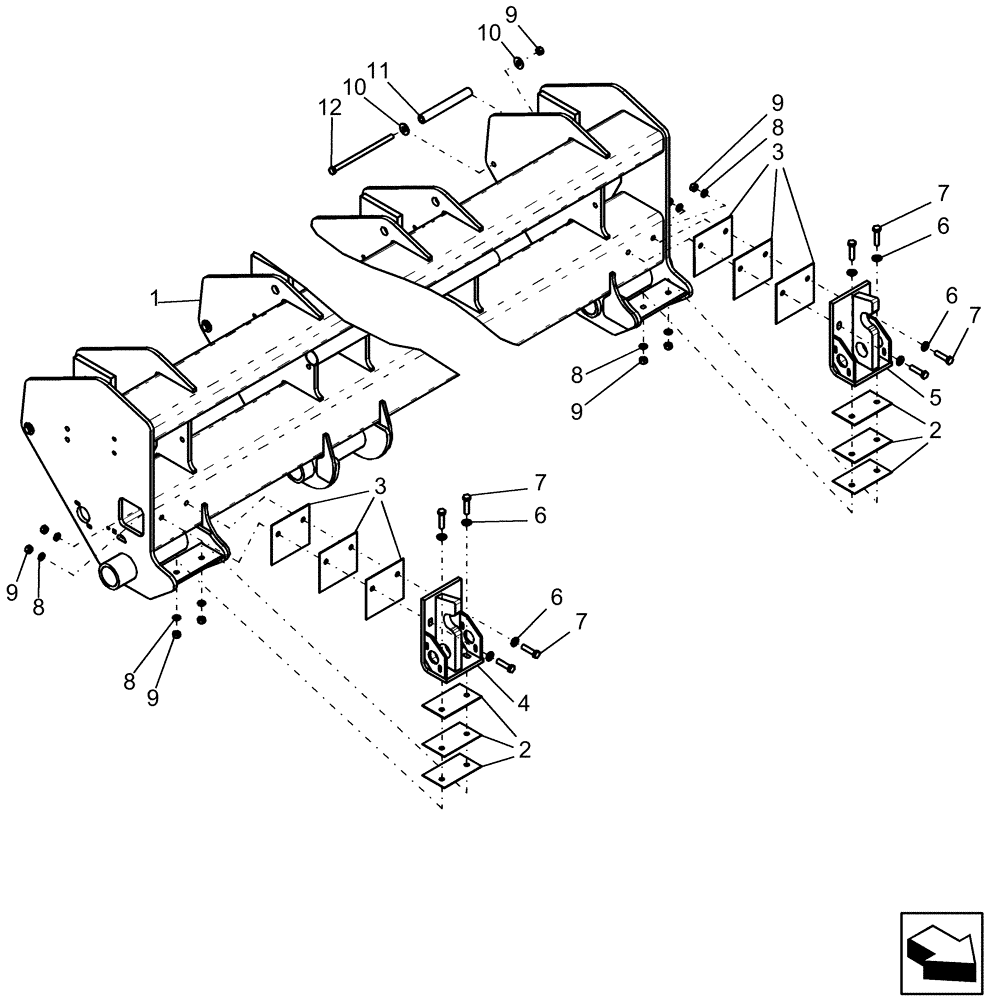

Запчасти Case IH 1250 (39.110.04) - FRAME - WING, INNER LATCH AND CYLINDER BRACERS - 24 ROW (39) - FRAMES AND BALLASTING

1

87668558

FRAME

center section, with decal

1шт.

2

87463181

PLATE

wing shim bottom

6шт.

3

87463182

PLATE

wing shim side

8шт.

4

87542383

LATCH

1шт.

5

87573444

LATCH

1шт.

6

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

8шт.

7

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

9

280431

NUT,1/2"-13, G5

12шт.

10

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

11

87545489

TUBE,14.3 mm ID x 25.4 mm OD x 196.5 mm L

center cylinder brace

4шт.

12

86622970

BOLT,Hex, 1/2" - 13 x 9 1/2", Gr 5

4шт.

13

84293575

BUSHING,76.25mm ID x 81mm OD x 63.5mm L

prelubricated

1шт.

Not Shown

1шт.
