(55.404.01[02]) - ELECTRICAL - REAR LIGHTING EXTENSION 87677108 - 12 ROW AND 16 ROW AND 24 ROW ASN Y9S007001

Запчасти Case IH 1250 (55.404.01[02]) - ELECTRICAL - REAR LIGHTING EXTENSION 87677108 - 12 ROW AND 16 ROW AND 24 ROW ASN Y9S007001 (55) - ELECTRICAL SYSTEMS

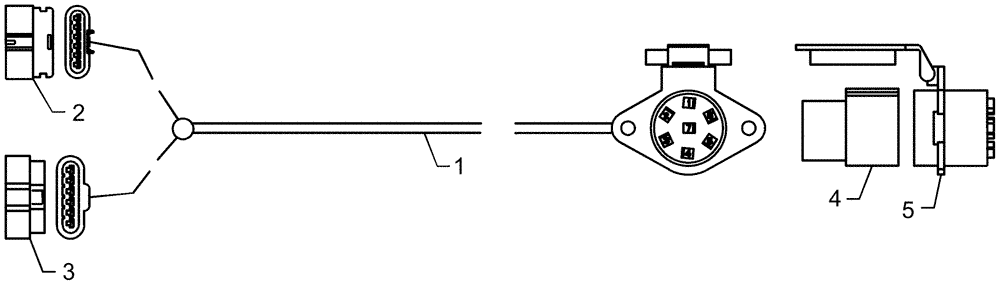

Схема запчастей Case IH 1250 - (55.404.01[02]) - ELECTRICAL - REAR LIGHTING EXTENSION 87677108 - 12 ROW AND 16 ROW AND 24 ROW ASN Y9S007001 (55) - ELECTRICAL SYSTEMS
4
1
2
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87677108

CABLE EXTENSION

rear lighting for ISOBUS harnesses

1шт.

2

87541128

ELEC CONNECTOR,Male

1шт.

3

87541127

ELEC CONNECTOR,Female

1шт.

4

481849C1

PROTECTIVE COVER

rubber boot

1шт.

5

412766A1

MULTIPOLE CONNECTOR

metal 7c receptacle

1шт.
