(55.424.10) - ELECTRICAL - EARLY RISER IV CONTROL LAYOUT - 12 ROW

Запчасти Case IH 1250 (55.424.10) - ELECTRICAL - EARLY RISER IV CONTROL LAYOUT - 12 ROW (55) - ELECTRICAL SYSTEMS

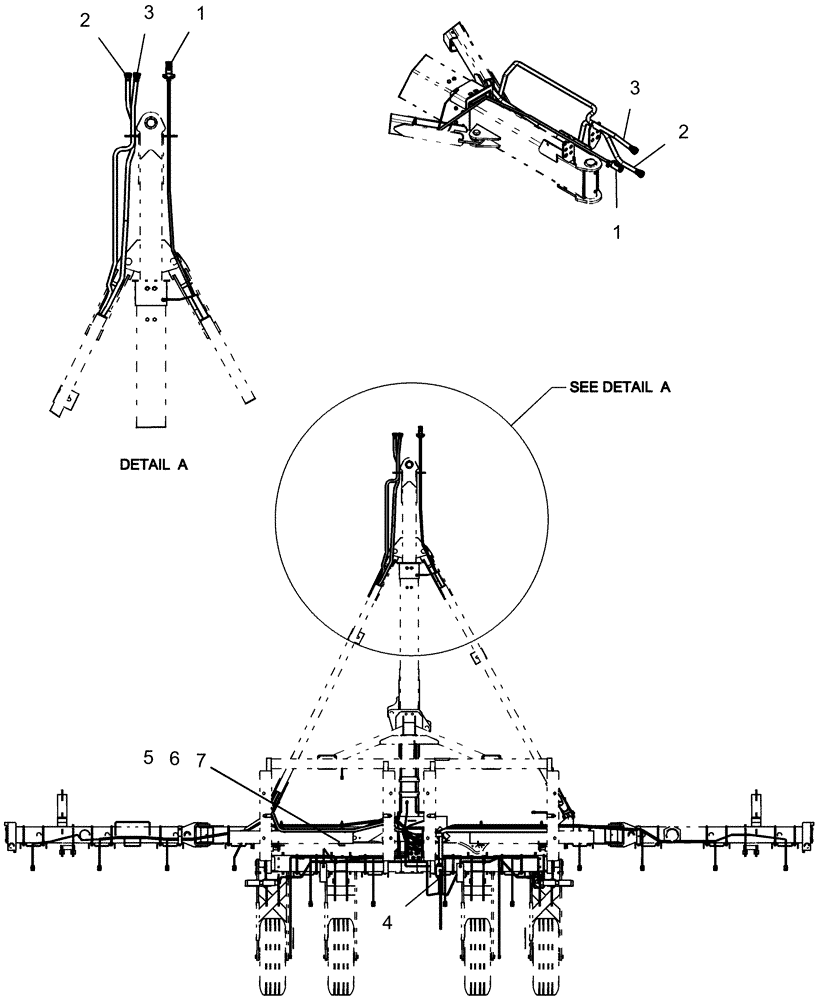

Схема запчастей Case IH 1250 - (55.424.10) - ELECTRICAL - EARLY RISER IV CONTROL LAYOUT - 12 ROW (55) - ELECTRICAL SYSTEMS
1
4
7
1
2
2
3
3
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87749468

HARNESS

12 row and 16 row, lighting, Early Riser IV

1шт.

2

87754996

HARNESS

12 row and 16 row hitch, Early Riser IV

1шт.

3

87748407

HARNESS

toolbar, 12 row Early Riser IV

1шт.

4

86561136

MODULE

implement lighting control

1шт.

5

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

2шт.

6

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

7

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.
