(35.100.02) - HYDRAULICS - CENTER LIFT WHEELS HOSE ROUTING - 24 ROW

Запчасти Case IH 1250 (35.100.02) - HYDRAULICS - CENTER LIFT WHEELS HOSE ROUTING - 24 ROW (35) - HYDRAULIC SYSTEMS

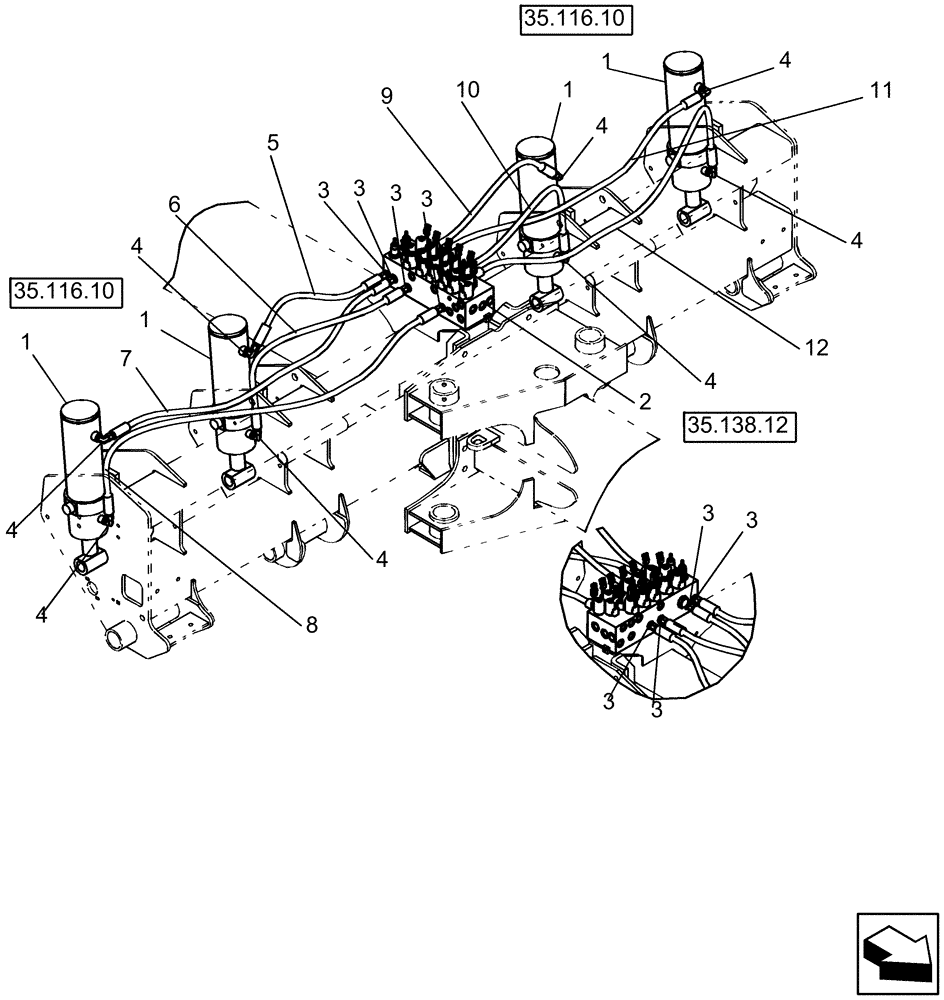

Схема запчастей Case IH 1250 - (35.100.02) - HYDRAULICS - CENTER LIFT WHEELS HOSE ROUTING - 24 ROW (35) - HYDRAULIC SYSTEMS
3
1
1
1
4
35.138.12
35.116.10
35.116.10
7
3
5
3
4
6
4
2
3
9
8
1
4
4
4
3
4
3
10
4
11
3
12
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87462742

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 314.45mm Stroke

4 1/2" x 12 3/8" master

4шт.

2

87552897

VALVE

assembly, lift and fold

1шт.

3

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

8шт.

4

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

8шт.

5

1336924C1

HYDRAULIC HOSE

1/2" x 27" fl

1шт.

6

90878C1

HYDRAULIC HOSE

1/2" x 39" fl

1шт.

7

90874C1

HYDRAULIC HOSE

1/2" x 55" fl

1шт.

8

1301966C2

HYDRAULIC HOSE

1/2" x 70" fl

1шт.

9

1336924C1

HYDRAULIC HOSE

1/2" x 27" fl

1шт.

10

90878C1

HYDRAULIC HOSE

1/2" x 39" fl

1шт.

11

90874C1

HYDRAULIC HOSE

1/2" x 55" fl

1шт.

12

1301966C2

HYDRAULIC HOSE

1/2" x 70" fl

1шт.

13

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

12шт.

Not Shown

1шт.
