(75.110.16) - LIQUID FERTILIZER - HYDRAULIC HOSES - 12 ROW, 400 GALLON AND 16 ROW, 600 GALLON (12 ROW SHOWN)

Запчасти Case IH 1250 (75.110.16) - LIQUID FERTILIZER - HYDRAULIC HOSES - 12 ROW, 400 GALLON AND 16 ROW, 600 GALLON (12 ROW SHOWN) (75) - SOIL PREPARATION

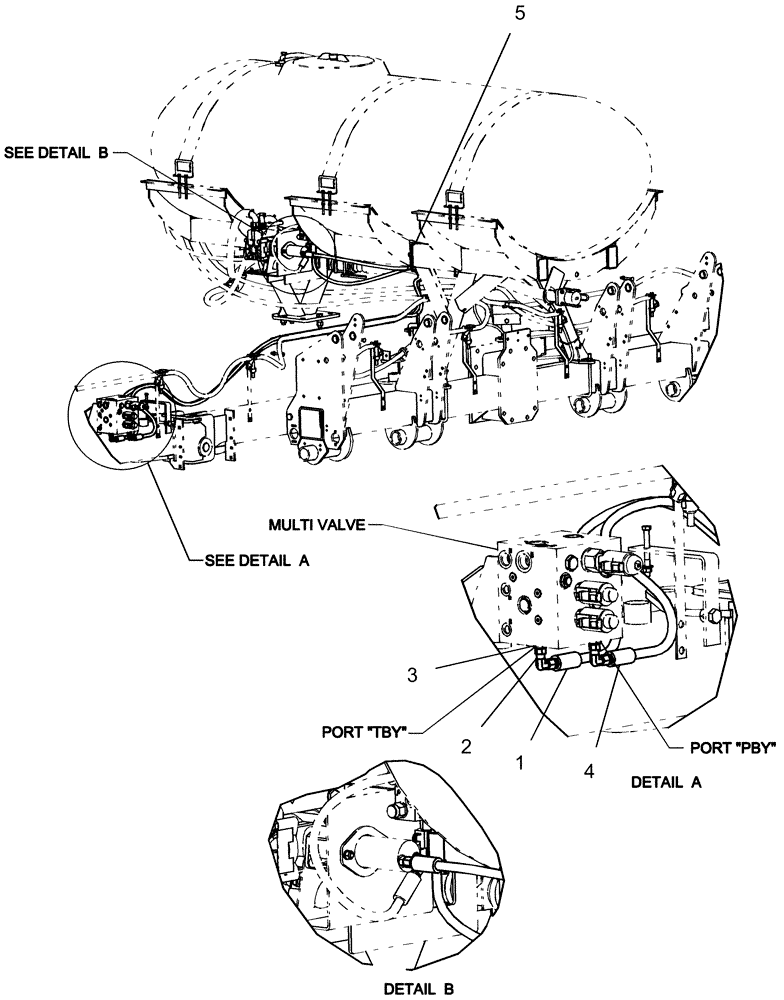

Схема запчастей Case IH 1250 - (75.110.16) - LIQUID FERTILIZER - HYDRAULIC HOSES - 12 ROW, 400 GALLON AND 16 ROW, 600 GALLON (12 ROW SHOWN) (75) - SOIL PREPARATION
1
4
2
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1284254C1

HYDRAULIC HOSE

3/8" x 170" fl

1шт.

12 Row

1шт.

1

129759C2

HYDRAULIC HOSE

3/8" x 180" fl

1шт.

16 Row

1шт.

2

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

3

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.

4

1284254C1

HYDRAULIC HOSE

3/8" x 170" fl

1шт.

12 Row

1шт.

4

129759C2

HYDRAULIC HOSE

3/8" x 180" fl

1шт.

16 Row

1шт.

5

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.
