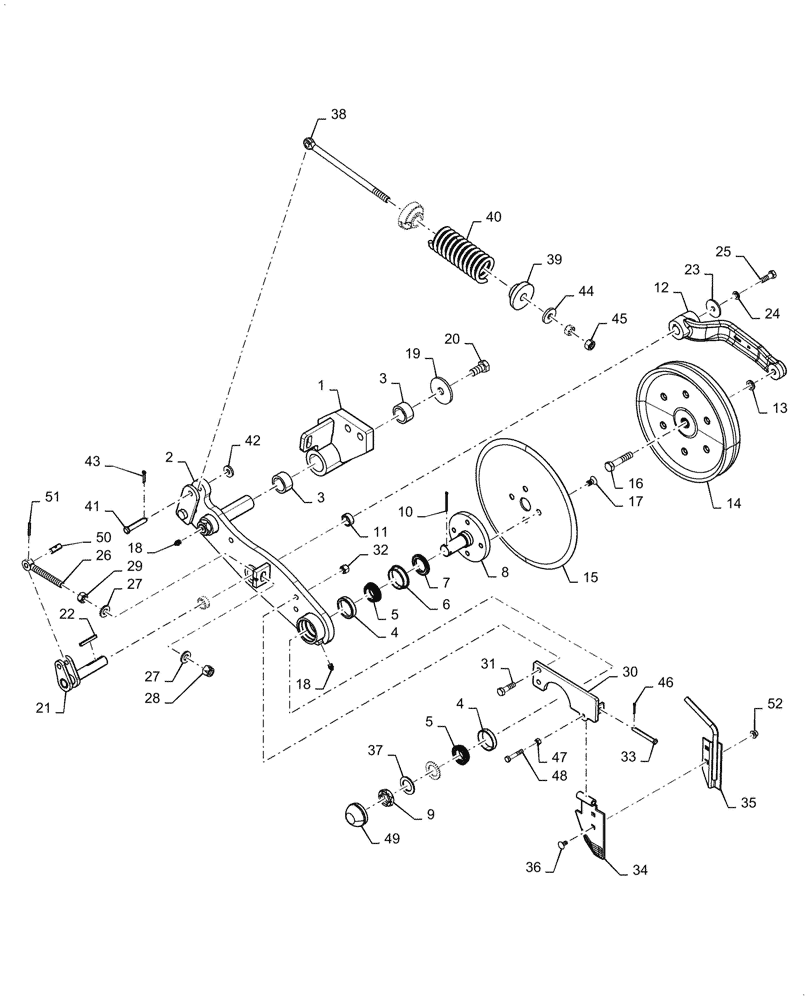

Запчасти Case IH 1250 (75.110.47[03]) - LIQUID FERTILIZER COULTER RIGHT SIDE AFTER SERIAL NUMBER YCS0028601 (75) - SOIL PREPARATION

1

87677728

SUPPORT

Coulter Right Painted

1шт.

2

87677730

ARM

Coulter Right

1шт.

3

87624379

BEARING LINER,38.27 mm ID x 50.88 mm OD x 25.4 mm

2шт.

4

651817R1

BEARING CUP

2шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

2шт.

6

472222R1

SLEEVE

1шт.

7

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

1шт.

8

84224620

SPINDLE

Coulter

1шт.

9

519250R1

SLOTTED NUT

1шт.

10

86523955

COTTER PIN,1/8" x 2"

1шт.

11

87584013

BEARING LINER,25.634 mm ID x 31.87 mm OD x 12.7 mm

2шт.

12

87628254

ARM

Disk Opener

1шт.

13

87023159

WASHER,0.64" ID x 1.05" OD x 0.13" Thk

1шт.

14

87628246

WHEEL

2x13 Offset

1шт.

15

87584040

BLADE

Coulter

1шт.

16

87023126

BOLT,Hex, 5/8" - 11 x 3", LH Thread, Gr 5

1шт.

17

87010473

HEX SOC SCREW,FLAT, 1/2" - 13 x 7/8"

4шт.

18

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

19

86637951

WASHER,0.81" ID x 3" OD x 0.24" Thk

1шт.

20

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

1шт.

21

87584022

PIN

Gauge Wheel

1шт.

22

87599601

KEY

1шт.

23

86625245

WASHER,0.52" ID x 2" OD x 0.16" Thk

1шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

25

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

26

87584046

EYEBOLT

1шт.

27

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

2шт.

28

85700693

NUT,5/8" - 11, Gr C

1шт.

29

86625068

NUT,5/8"-11, G8

1шт.

30

87652325

BRACKET

Scraper

1шт.

31

87333862

NUT

2шт.

32

87333862

NUT

2шт.

33

86632570

HEADED PIN

1шт.

34

84423068

SCRAPER BLADE

1шт.

35

84421408

BRACKET

1шт.

36

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

37

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

2шт.

38

84194013

EYEBOLT

1шт.

39

20090050

HOLDER

Spring

2шт.

40

24143880

COMPRESSION SPRING

1шт.

41

86624072

HEADED PIN,12.7mm OD x 69.85mm L

1шт.

42

84158486

WASHER,0.53" ID x 1.25" OD x 0.19" Thk

1шт.

43

87397

COTTER PIN,3/16" OD x 1" L

1шт.

44

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

1шт.

45

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

46

80755

COTTER PIN,1/8" OD x 1" L

1шт.

47

9628503

NUT,3/8"-16, G5

1шт.

48

80280644

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

1шт.

49

87505175

DUST CAP

1шт.

50

87584047

PIN

1шт.

51

87742350

ROLL PIN

1шт.

52

86521609

FLANGE NUT,Flg, 3/8"-16

2шт.
