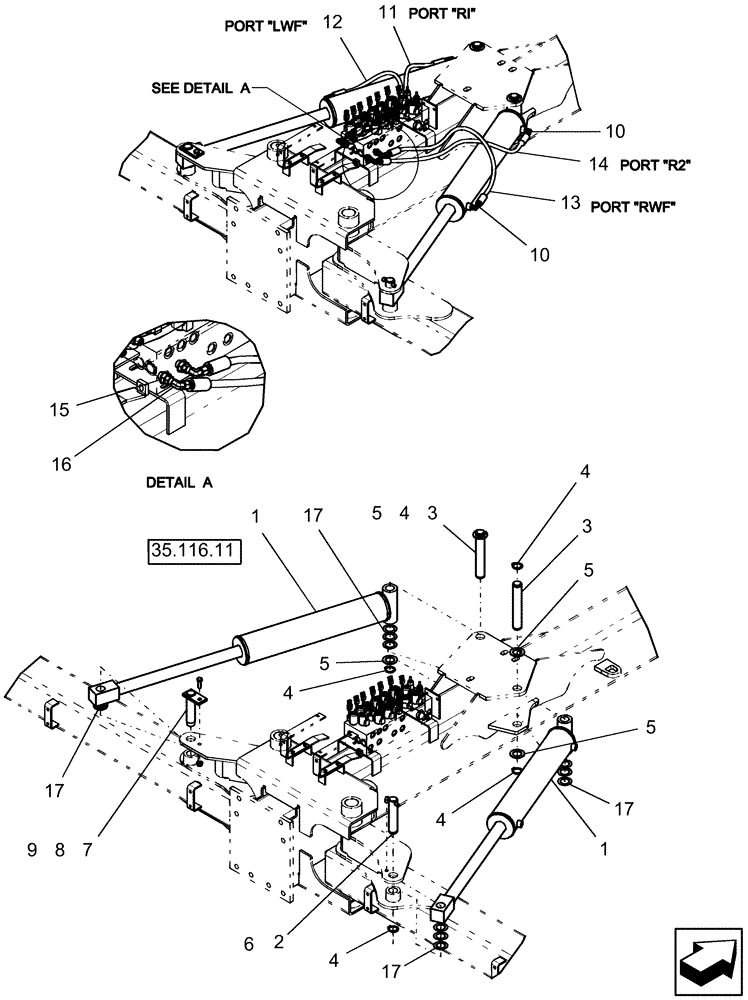

Запчасти Case IH 1250 (35.116.02[01]) - HYDRAULICS - FOLD CYLINDERS - 16 ROW BSN Y9S007001 (35) - HYDRAULIC SYSTEMS

1

87702605

CYLINDER,Double Acting, 50.8mm Rod, 574.8mm Stroke

4 1/2" x 23 5/8"

2шт.

2

87578578

PIN

cylinder 38.1 mm x 145.2 mm ul

1шт.

3

87578573

PIN

38.1 mm x 223 mm ul

2шт.

4

86632531

SNAP RING,#150, Ext

5шт.

5

495-81224

WASHER,38.89mm ID x 63.5mm OD x 3.35mm Thk

4шт.

6

408033A1

PIN

J lock 1/2" x 3 3/8"

1шт.

7

87611651

PIN

fold cylinder

1шт.

8

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

9

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

10

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

4шт.

11

1251944C1

HYDRAULIC HOSE

3/8" x 41 fl

1шт.

12

1251944C1

HYDRAULIC HOSE

3/8" x 41 fl

1шт.

13

1251944C1

HYDRAULIC HOSE

3/8" x 41 fl

1шт.

14

1251944C1

HYDRAULIC HOSE

3/8" x 41 fl

1шт.

15

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

4шт.

16

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

4шт.

17

28691

WASHER,39mm ID x 60mm OD x 0.89mm Thk

1 17/32" id x 2 3/8" od x .035 thick

12шт.
