(75.200.21) - PNEUMATIC DOWN PRESSURE - AIR PUMP ASSEMBLY - HITCH MOUNTED

Запчасти Case IH 1250 (75.200.21) - PNEUMATIC DOWN PRESSURE - AIR PUMP ASSEMBLY - HITCH MOUNTED (75) - SOIL PREPARATION

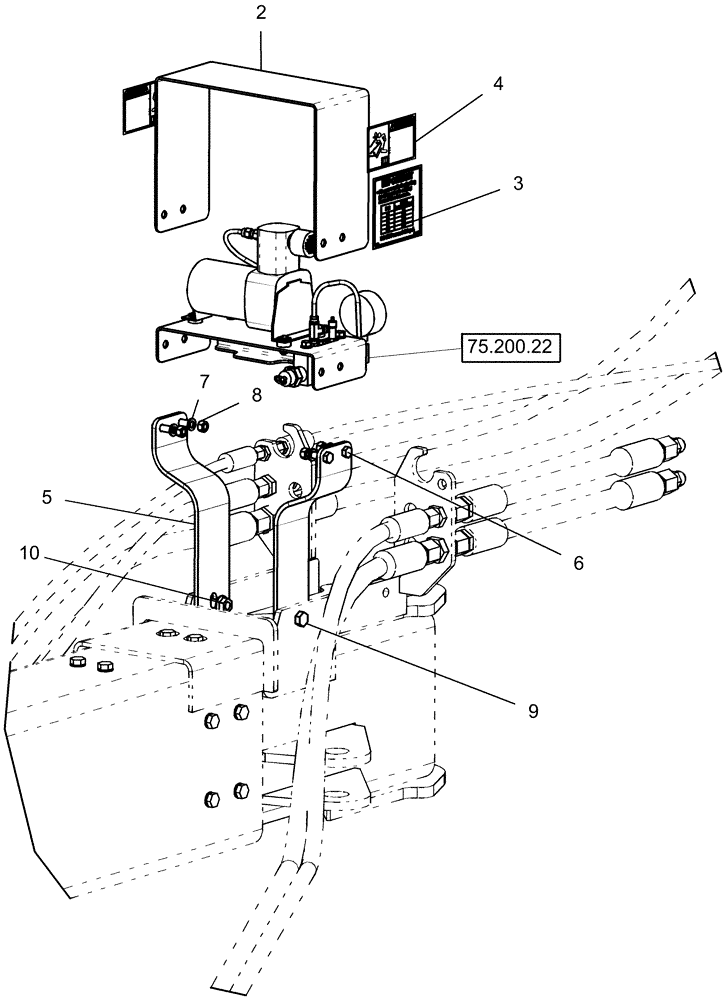

Схема запчастей Case IH 1250 - (75.200.21) - PNEUMATIC DOWN PRESSURE - AIR PUMP ASSEMBLY - HITCH MOUNTED (75) - SOIL PREPARATION
9
5
4
8
3
6
10
2
7
75.200.22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

87734598

BRACKET

pneumatic pump protection with decals

1шт.

3

87720301

DECAL

pneumatic down pressure setting

1шт.

4

87697284

DECAL

safety

2шт.

5

87693591

BRACKET

vertical mount

2шт.

6

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

7

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

8

9628503

NUT,3/8"-16, G5

4шт.

9

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

10

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.
