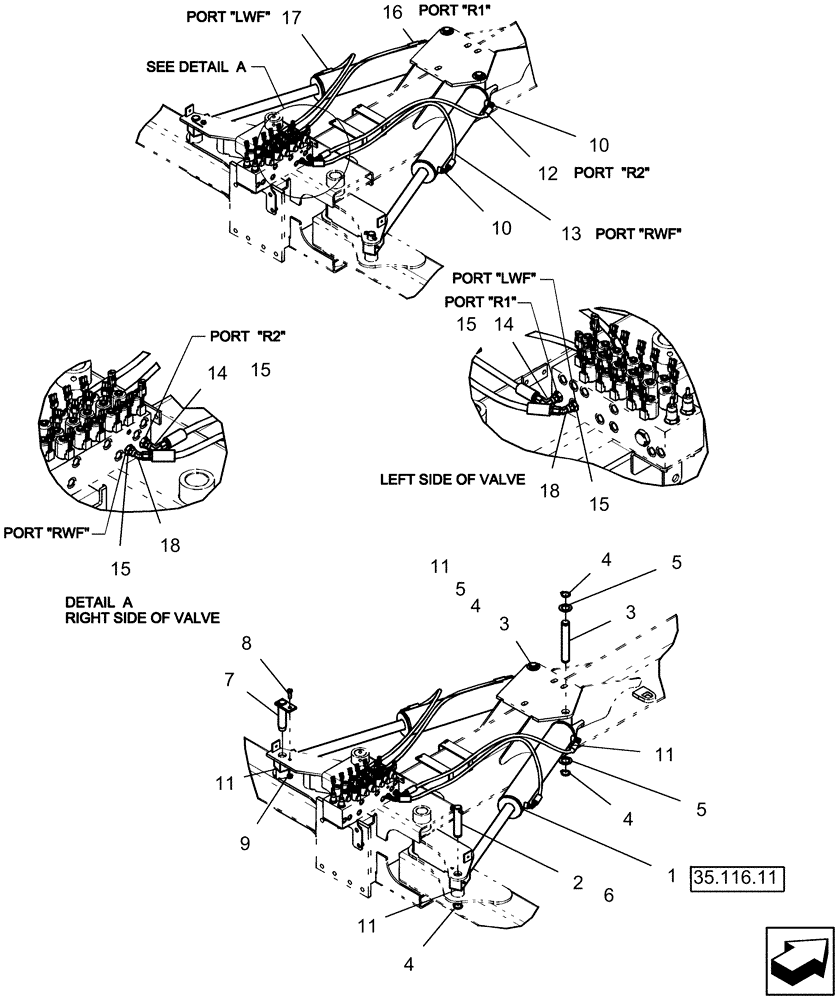

Запчасти Case IH 1250 (35.116.02[02]) - HYDRAULICS - FOLD CYLINDERS - 12 ROW AND 16 ROW ASN Y9S007001 (35) - HYDRAULIC SYSTEMS

1

87702605

CYLINDER,Double Acting, 50.8mm Rod, 574.8mm Stroke

4 1/2" x 23 5/8"

2шт.

2

87578578

PIN

cylinder 38.1 mm x 145.2 mm ul

1шт.

3

87578573

PIN

38.1 mm x 223 mm ul

2шт.

4

86632531

SNAP RING,#150, Ext

5шт.

5

86632586

WASHER,1.53" ID x 2.5" OD x 0.11" Thk

4шт.

6

408033A1

PIN

J lock 1/2" x 3 3/8"

1шт.

7

87611651

PIN

fold cylinder

1шт.

8

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

9

88871

NUT,1/2"-13, GC

1шт.

10

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

4шт.

11

28691

WASHER,39mm ID x 60mm OD x 0.89mm Thk

1 17/32" id x 2 3/8" od x .035 thick

12шт.

12

1285380C2

HYDRAULIC HOSE

3/8" x 50" (1270 mm) fl

1шт.

13

1285380C2

HYDRAULIC HOSE

3/8" x 50" (1270 mm) fl

1шт.

14

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

15

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

4шт.

16

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

3/8" x 55" fl

1шт.

17

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

3/8" x 55" fl

1шт.

18

86512959

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.
