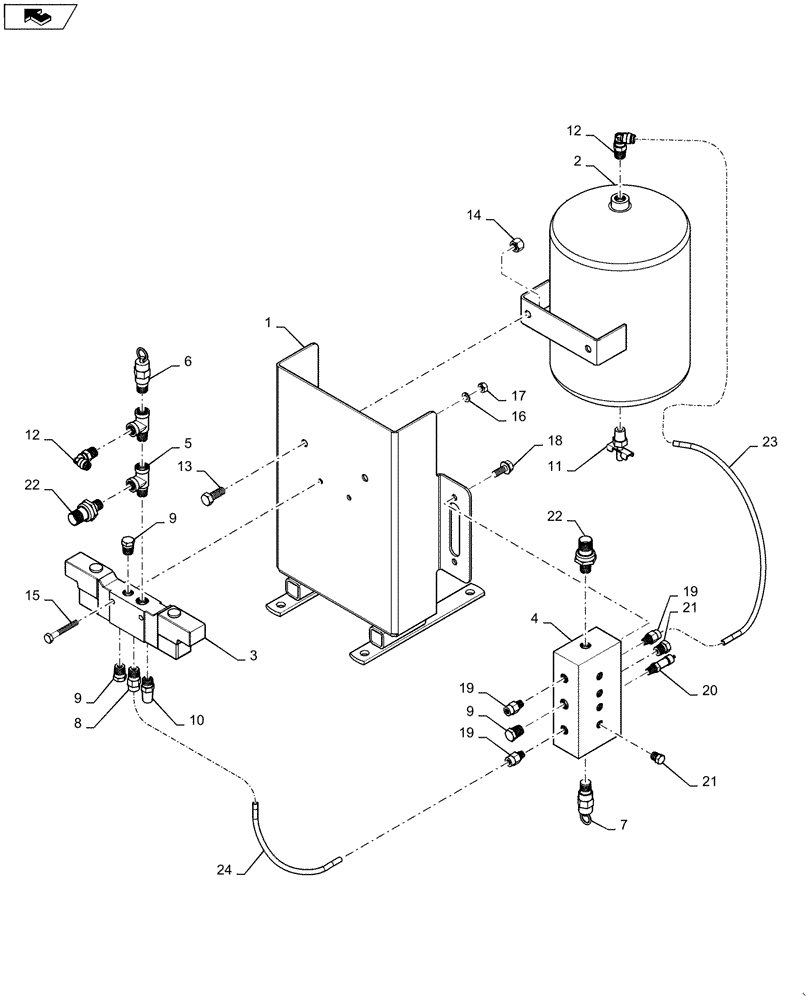

Запчасти Case IH 1250 (75.200.29[01]) - PNEUMATIC DOWN PRESSURE - AIR TANK AND VALVE, MODEL YEAR 2011 (75) - SOIL PREPARATION

1

84268208

SUPPORT

Air Tank Assembly

1шт.

2

84164053

AIR TANK

150 psi, 1.6 Gallon

1шт.

3

84141998

VALVE

Pneumatic Pilot

1шт.

4

84165808

MANIFOLD

Air Pneumatic And Air Clutch

1шт.

5

217-51

TEE,1/4"-18 NPTF Fem x 1/4"-18 NPTF Male Run

2шт.

6

84162561

VALVE PRESSURE RELIE

110 psi

1шт.

7

84165807

VALVE PRESSURE RELIE

140 psi

1шт.

8

84163245

FITTING

1/4" M Push To Connect x 1/4" M NPT

1шт.

9

217-405

PLUG,Hex Hd, 1/4" - 18 NPT

3шт.

10

87752977

MUFFLER

Filter

1шт.

11

217-92

COCK

Fuel Tank Drain

1шт.

12

84166114

90 ELBOW

2шт.

13

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

14

87039402

NUT,3/8"-16, GB

2шт.

15

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

16

80682

LOCK WASHER,1/4"

2шт.

17

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

18

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

19

84256879

FITTING

3шт.

20

87623685

VALVE

Tank, Schrader

1шт.

21

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

5шт.

22

84163183

TRANSDUCER

Pressure, 0-150 psig

2шт.

23

87675607

HOSE, BULK,4.318 mm ID x 6.35 mm OD x 76200 mm L

1/4" x 250', Bulk, Cut To 350 mm

1шт.

24

87675607

HOSE, BULK,4.318 mm ID x 6.35 mm OD x 76200 mm L

1/4" x 250', Bulk, Cut To 210 mm

1шт.
