(75.200.29[02]) - PNEUMATIC DOWN PRESSURE - DOUBLE AIR TANK AND VALVE, MODEL YEAR 2011

Запчасти Case IH 1250 (75.200.29[02]) - PNEUMATIC DOWN PRESSURE - DOUBLE AIR TANK AND VALVE, MODEL YEAR 2011 (75) - SOIL PREPARATION

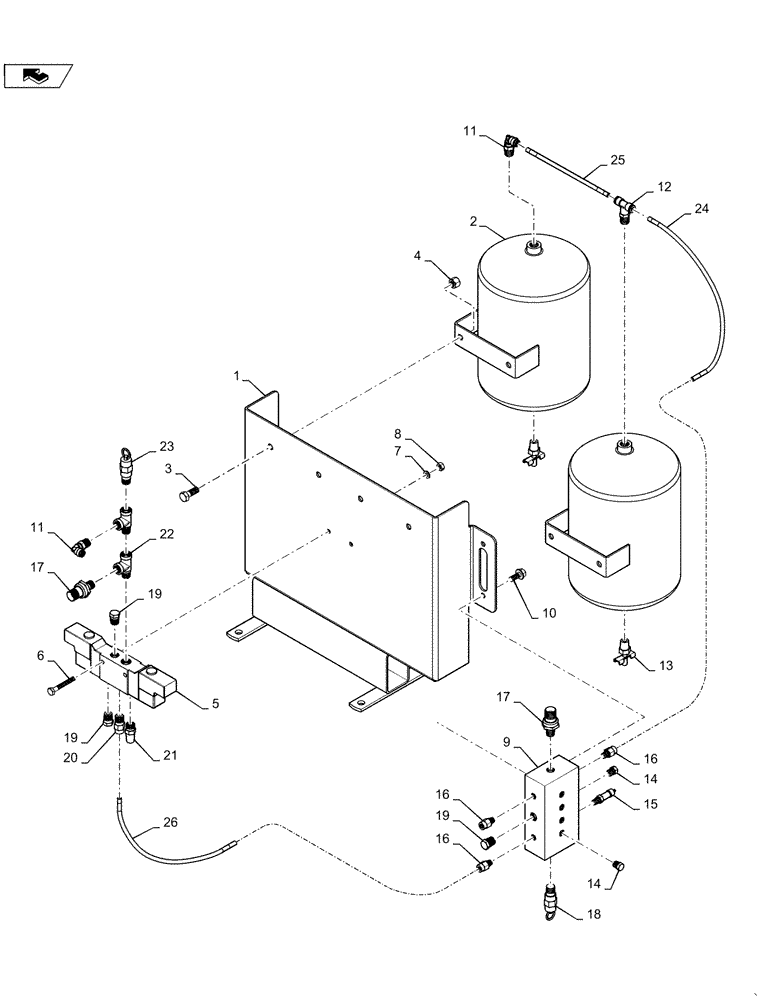

Схема запчастей Case IH 1250 - (75.200.29[02]) - PNEUMATIC DOWN PRESSURE - DOUBLE AIR TANK AND VALVE, MODEL YEAR 2011 (75) - SOIL PREPARATION
17
7
19
18
15
19
16
8
23
20
9
22
17
26
19
12
11
16
21
13
5
14
3
25
home
4
6
2
11
10
16
1
14
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84268264

SUPPORT

Double Air Tank Assembly

1шт.

2

84164053

AIR TANK

150 psi, 1.6 Gallon

2шт.

3

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

4

87039402

NUT,3/8"-16, GB

4шт.

5

84141998

VALVE

Pneumatic Pilot

1шт.

6

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

7

80682

LOCK WASHER,1/4"

2шт.

8

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

9

84165808

MANIFOLD

Air Pneumatic Down Pressure And Air Clutch

1шт.

10

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

11

84166114

90 ELBOW

2шт.

12

84164949

COUPLING

1шт.

13

217-92

COCK

Fuel Tank Drain

2шт.

14

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

5шт.

15

87623685

VALVE

Tank, Schrader

1шт.

16

84256879

FITTING

3шт.

17

84163183

TRANSDUCER

Pressure, 0-150 psig

2шт.

18

84165807

VALVE PRESSURE RELIE

140 psi

1шт.

19

217-405

PLUG,Hex Hd, 1/4" - 18 NPT

3шт.

20

84163245

FITTING

1/4" M Push To Connect x 1/4" M NPT

1шт.

21

87752977

MUFFLER

Filter

1шт.

22

217-51

TEE,1/4"-18 NPTF Fem x 1/4"-18 NPTF Male Run

2шт.

23

84162561

VALVE PRESSURE RELIE

110 psi

1шт.

24

87675607

HOSE, BULK,4.318 mm ID x 6.35 mm OD x 76200 mm L

1/4" x 250', Bulk, Cut To 350 mm

1шт.

25

87675607

HOSE, BULK,4.318 mm ID x 6.35 mm OD x 76200 mm L

1/4" x 250', Bulk, Cut To 350 mm

1шт.

26

87675607

HOSE, BULK,4.318 mm ID x 6.35 mm OD x 76200 mm L

1/4" x 250', Bulk, Cut To 210 mm

1шт.
